Purchase ICS97U2A877A, In-stock ICS97U2A877A From SeekIC.
- Table of contents:
ICS97U2A877A
-
Suppliers
DataSheet
General Description
ICS97U2A877A Maximum Ratings
Supply Voltage (VDDQ & AVDD) . . . . . . . . . -0.5V to 2.5V
Logic Inputs . . . . . . . . . . . . . GND - 0.5V to VDDQ + 0.5V
Ambient Operating Temperature . . . . . . 0°C to +70°C
Storage Temperature . . . . . . . . . . . . .-65°C to +150°C
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
ICS97U2A877A Features
• Low skew, low jitter PLL clock driver
• 1 to 10 differential clock distribution (SSTL_18)
• Feedback pins for input to output synchronization
• Spread Spectrum tolerant inputs
• Auto PD when input signal is at a certain logic state
• 1 to 10 differential clock distribution (SSTL_18)
• Feedback pins for input to output synchronization
• Spread Spectrum tolerant inputs
• Auto PD when input signal is at a certain logic state
ICS97U2A877A Typical Application
• DDR2 Memory Modules / Zero Delay Board Fan Out
• Provides complete DDR DIMM logic solution with ICSSSTU32864/SSTUF32864/SSTUF32866/
SSTUA32864/SSTUA32866/SSTUA32S868/SSTUA32S865/SSTUA32S869
• Provides complete DDR DIMM logic solution with ICSSSTU32864/SSTUF32864/SSTUF32866/
SSTUA32864/SSTUA32866/SSTUA32S868/SSTUA32S865/SSTUA32S869

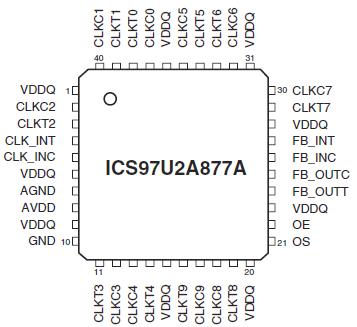

ICS97U2A877A Connection Diagram
ICS97U2A877A
