General Description
ICS9FG1904B-1 General Description
ThThe ICS9FG1904-1 follows the Intel DB1900GS Differential Buffer Specification, except for the output groupings and gear table. The gear table is a blend of the GS and GSO gearing. This buffer provides 19 output clocks for CPU Host Bus, PCIExpress, or Fully Buffered DIMM applications. The outputs are configured with two groups. Both groups, DIF_(14:0) and DIF_(18:15) can be equal to or have a gear ratio to the input clock. A differential CPU clock from a CK410B+ main clock generator, such as the ICS932S421, drives the ICS9FG1904-1. The ICS9FG1904-1 can provide outputs up to 400MHz.
ICS9FG1904B-1 Maximum Ratings
| PARAMETER | SYMBOL | CONDITIONS | MIN | TYP | MAX | UNITS | Notes |
| 3.3V Core Supply Voltage | VDD_A | GND - 0.5 | VDD + 0.5V | V | 1 | ||
| 3.3V Logic Supply Voltage | VDD_In | GND - 0.5 | VDD + 0.5V | V | 1 | ||
| Storage Temperature | Ts | -65 | 150 | °C | 1 | ||
| Ambient Operating Temp | Tambient | 0 | 70 | °C | 1 | ||
| Case Temperature | Tcase | 115 | °C | 1 | |||
| Input ESD protection | ESD prot | Human Body Model | 2000 | V | 1 |
ICS9FG1904B-1 Features
• Power up default is all outputs in 1:1 mode
• DIF_(14:0) can be "gear-shifted" from the input CPU Host Clock
• DIF_(18:15) can be "gear-shifted" from the input CPU Host Clock
• Spread spectrum compatible
• Supports output clock frequencies up to 400 MHz
• 8 Selectable SMBus addresses
• SMBus address determines PLL or Bypass mode
• DIF_(14:0) can be "gear-shifted" from the input CPU Host Clock
• DIF_(18:15) can be "gear-shifted" from the input CPU Host Clock
• Spread spectrum compatible
• Supports output clock frequencies up to 400 MHz
• 8 Selectable SMBus addresses
• SMBus address determines PLL or Bypass mode

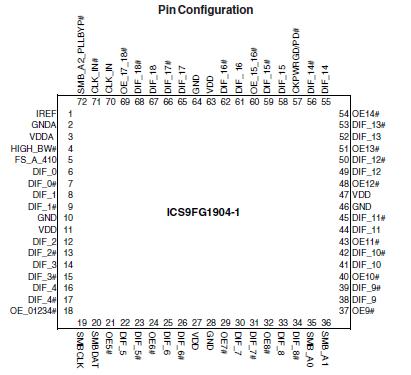

ICS9FG1904B-1 Connection Diagram
