ICSSSTV16857 Maximum Ratings
Storage Temperature . . . . . . . . . . 65°C to +150°C
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . -0.5 to 3.6V
Input Voltage1 . . . . . . . . . . . . . . . .. . . -0.5 to VDD +0.5
Output Voltage1,2. . . . . . . . . . . . . . . -0.5 to VDDQ +0.5
Input Clamp Current . . . . . . . . . . . . . . . . . . . ±50 mA
Output Clamp Current . . . . . . . . . . . . . . . . . . .. ±50mA
Continuous Output Current . . . . . . . . . . . . . . . ±50mA
VDD, VDDQ or GND Current/Pin . . . . . . . . . . . . ±100mA
Package Thermal Impedance3. . . . . . . . . . . . . 55°C/W
Notes:
1. The input and output negative voltage ratings may be excluded if the input and output clamp ratings are observed.
2. This current will flow only whtn the output is in the high state level V0 >VDDQ.
3. The package thermal impedance is calculated in accordance with JESD 51.
ICSSSTV16857 Features
• Differential clock signal
• Meets SSTL_2 signal data
• Supports SSTL_2 class I & II specifications
• low-voltage operation VDD = 2.3V to 2.7V
• 48 pin TSSOP package

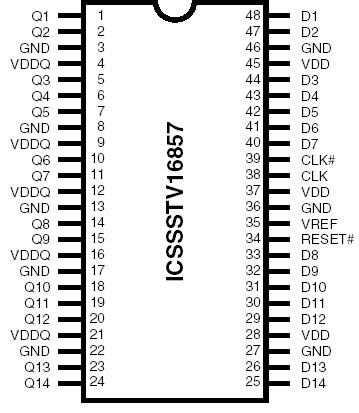

ICSSSTV16857 Connection Diagram
