MFG:SONY Package Cooled:DIP D/C:05+
MFG: SONY
Package Cooled: DIP
D/C: 05+
Description: The ICX039DNA is an interline CCD solid-state image sensor suitable for PAL color video cameras with a...

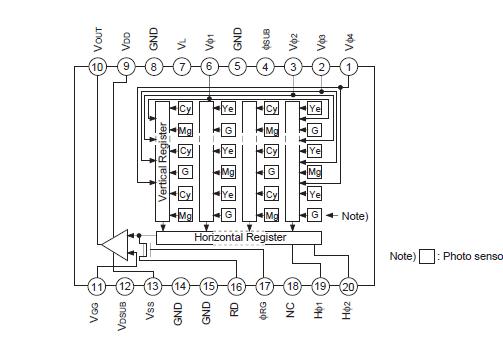

The ICX039DNA is an interline CCD solid-state image sensor suitable for PAL color video cameras with a diagonal 8mm (Type 1/2) system. Smear, sensitivity, D-range, S/N and other characteristics have been greatly improved compared with the ICX039BNA. High sensitivity and low dark current are achieved through the adoption of Ye, Cy, Mg and G complementary color mosaic filters and HAD (Hole-Accumulation Diode) sensors.
This chip features a field period readout system and an electronic shutter with variable charge-storage time.
This chip is compatible with and can replace the ICX039BNA.
|
Item |
Ratings | Unit | Remarks | |
| Substrate clock SUB GND | 0.3 to +50 | V | ||
| Supply voltage | VDD, VRD, VDSUB, VOUT, VSS GND | 0.3 to +18 | V | |
| VDD, VRD, VDSUB, VOUT, VSS SUB | 55 to +10 | V | ||
| Clock input voltage | V1, V2, V3, V4 GND | 15 to +20 | V | |
| V1, V2, V3, V4 SUB | to +10 | V | ||
| Voltage difference between vertical clock input pins | to +15 | V | *1 | |
| Voltage difference between horizontal clock input pins | to +17 | V | ||
| H1, H2 V4 | 17 to +17 | V | ||
| RG, VGG GND | 10 to +15 | V | ||
| RG, VGG SUB | 55 to +10 | V | ||
| VL SUB | 65 to +0.3 | V | ||
| Pins other than GND and SUB VL | 0.3 to +30 | v | ||
| Storage temperature | 30 to +80 | °C | ||
| Operating temperature | 10 to +60 | °C | ||
ICX039DNA
PDF/DataSheet Download
