MFG:N/A Package Cooled:NA/ D/C:09+
MFG: N/A
Package Cooled: NA/
D/C: 09+
Description: The ICX429ALL is an interline CCD solid-state image sensor suitable for CCIR B/W video cameras with a ...
The ICX429ALL is an interline CCD solid-state image sensor suitable for CCIR B/W video cameras with a diagonal 8mm (Type 1/2) system. Basic characteristics such as sensitivity, smear, dynamic range and S/N are improved drastically through the adoption of EXview HAD CCDTM technology.

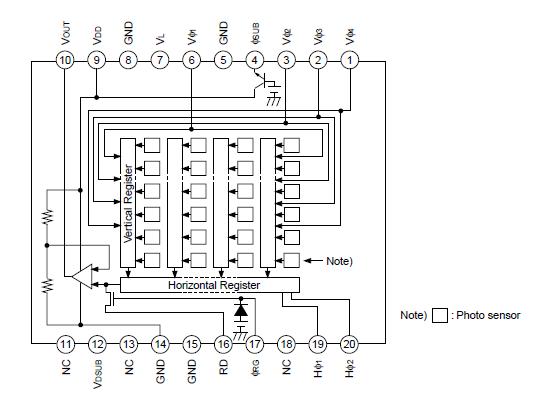

This chip features a field period readout system and an electronic shutter with variable charge-storage time. This chip is compatible with the pins of the ICX249AL and has the same drive conditions.
EXview HAD CCDTM has differrent spectral characteristics from the curreent CCD.
|
Item |
Ratings | Unit | Remarks | |
| Substrate clock SUB GND | 0.3 to +50 | V | ||
| Supply voltage | VDD, VRD, VDSUB, VOUT GND | 0.3 to +18 | V | |
| VDD, VRD, VDSUB, VOUT SUB | 55 to +10 | V | ||
| Clock input voltage | V1, V2, V3, V4 GND | 15 to +20 | V | |
| V1, V2, V3, V4 SUB | to +10 | V | ||
| Voltage difference between vertical clock input pins | to +15 | V | *1 | |
| Voltage difference between horizontal clock input pins | to +17 | V | ||
| H1, H2 V4 | 17 to +17 | V | ||
| RG GND | 10 to +15 | V | ||
| RG SUB | 55 to +10 | V | ||
| VL SUB | 65 to +0.3 | V | ||
| Pins other than GND and SUB VL | 0.3 to +30 | V | ||
| Storage temperature | 30 to +80 | °C | ||
| Operating temperature | 10 to +60 | °C | ||
ICX429ALL
PDF/DataSheet Download
