IDT49FCT3805A

Features: • 0.5 MICRON CMOS Technology• Guaranteed low skew < 500ps (max.)• Very low duty cycle distortion < 1.0ns (max.)• Very low CMOS power levels• TTL compatible inputs and outputs• Inputs can be driven from 3.3V or 5V components• Two independent...

product image

IDT49FCT3805A Picture
See larger image
SeekIC No. : 004371686 Detail

IDT49FCT3805A: Features: • 0.5 MICRON CMOS Technology• Guaranteed low skew < 500ps (max.)• Very low duty cycle distortion < 1.0ns (max.)• Very low CMOS power levels• TTL compati...

IDT49FCT3805A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT49FCT3805A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 0.5 MICRON CMOS Technology
• Guaranteed low skew < 500ps (max.)
• Very low duty cycle distortion < 1.0ns (max.)
• Very low CMOS power levels
• TTL compatible inputs and outputs
• Inputs can be driven from 3.3V or 5V components
• Two independent output banks with 3-state control
• 1:5 fanout per bank
• 'Heartbeat' monitor output
• Available in DIP, SOIC, SSOP, QSOP, Cerpack and
   LCC packages
• Military product compliant to MIL-STD-883, Class B
• VCC = 3.3V ± 0.3V


Pinout

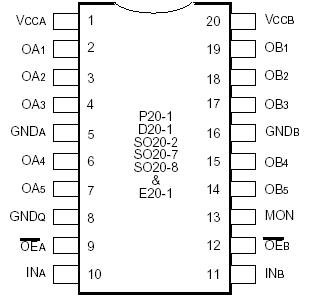

Connection Diagram


Specifications

Symbol Rating Commercial Military Unit
VTERM(2) Terminal Voltage
with Respect to
GND		 0.5 to +4.6 0.5 to +4.6 V
VTERM(3) Terminal Voltage
with Respect to
GND		 0.5 to +7.0 0.5 to +7.0 V
VTERM(4) Terminal Voltage
with Respect to
GND		 0.5 to VCC
+ 0.5		 0.5 to VCC
+ 0.5		 V
TA Operating
Temperature		 0 to +70 55 to +125
TBIAS Temperature
Under Bias		 55 to +125 65 to +135
TSTG Storage
Temperature		 55 to +125 65 to +150
IOUT DC Output
Current		 60 to +60 60 to +60 mA



Description

The IDT49FCT3805A is a 3.3 volt, non-inverting clock driver built using advanced dual metal CMOS technology. The device consists of two banks of drivers, each with a 1:5 fanout and its own output enable control. The device has a "heartbeat" monitor for diagnostics and PLL driving. The MON output is identical to all other outputs and complies with the output specifications in this document. The FCT3805/A offers low capacitance inputs with hysteresis.

The IDT49FCT3805A is designed for high speed clock distribution where signal quality and skew are critical. The FCT 3805 also allows single point-to-point transmission line driving in applications such as address distribution, where one signal must be distributed to multiple receivers with low skew and
high signal quality.
