General Description
IDT49FCT805 General Description
The IDT49FCT805/A and IDT49FCT806/A are clock drivers built using advanced dual metal CMOS technology. The IDT49FCT805/A is a non-inverting clock driver and the IDT49FCT806/A is an inverting clock driver. Each device consists of two banks of drivers. Each bank drives five output buffers from a standard TTL compatible input. The devices feature a "heartbeat" monitor for diagnostics and PLL driving. The MON output is identical to all other outputs and complies with the output specifications in this document. The IDT49FCT805/A and IDT49FCT806/A offer low capacitance inputs with hysteresis. Rail-to-rail output swing improves noise margin and allows easy interface with CMOS inputs.
IDT49FCT805 Maximum Ratings
| Symbol | Description | Max. | Unit |
| VTERM(2) | Terminal Voltage with Respect to GND |
0.5 to +7.0 | V |
| VTERM(3) | Terminal Voltage with Respect to GND |
0.5 to VCC +0.5 |
V |
| TSTG | Storage Temperature | 65 to +150 | |
| IOUT | DC Output Current | 60 to +120 | mA |
IDT49FCT805 Features
• 0.5 MICRON CMOS Technology
• Guaranteed low skew < 700ps (max.)
• Low duty cycle distortion < 1ns (max.)
• Low CMOS power levels
• TTL compatible inputs and outputs
• Rail-to-rail output voltage swing
• High drive: -24mA IOH, 64mA IOL
• Two independent output banks with 3-state control
• 1:5 fanout per bank
• 'Heartbeat' monitor output
• Available in DIP, SOIC, SSOP (805 only), QSOP (805
only), Cerpack and LCC packages
• Military product compliant to MIL-STD-883, Class B
• Guaranteed low skew < 700ps (max.)
• Low duty cycle distortion < 1ns (max.)
• Low CMOS power levels
• TTL compatible inputs and outputs
• Rail-to-rail output voltage swing
• High drive: -24mA IOH, 64mA IOL
• Two independent output banks with 3-state control
• 1:5 fanout per bank
• 'Heartbeat' monitor output
• Available in DIP, SOIC, SSOP (805 only), QSOP (805
only), Cerpack and LCC packages
• Military product compliant to MIL-STD-883, Class B

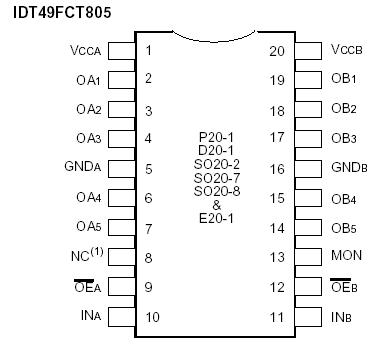

IDT49FCT805 Connection Diagram
IDT49FCT805
