Product Details

Description



Features:

• High-speed (equal access and cycle time)
   -Military: 15/20/25/35/45/55/70/85/100ns (max.)
   -Commercial: 15/20/25/35ns (max.)
• Low power consumption
• Battery backup operation - 2V data retention voltage
   (IDT6167LA only)
• Available in 20-pin CERDIP and Plastic DIP, and 20-pin
   SOJ
• Produced with advanced CMOS high-performance
   technology
• CMOS process virtually eliminates alpha particle soft-
   error rates
• Separate data input and output
• Military product compliant to MIL-STD-883, Class B

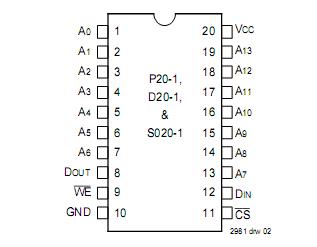

Pinout

Connection Diagram


Specifications

Symbol Rating Com'l. Mil. Unit
VTERM

Terminal Voltage with Respect to GND

 0.5 to+7.0 0.5 to +7.0 V
TA Operating0 to +7055 to +125 0 to +70 55 to +125 °C
TBIAS Temperature Under Bias 55 to +125 65 to +135 °C
TSTG Storage Temperature 55 to +125 65 to +150 °C
PT Power Dissipation 1.0 1.0 W
IOUT DC Output Current 50 50 mA



Description

The IDT6167LA is a 16,384-bit high-speed static RAM organized as 16K x 1. The part is fabricated using IDT's high performance, high reliability CMOS technology.

Access times as fast as 15ns are available. The circuit also offers a reduced power standby mode. When CS goes HIGH, the circuit will automatically go to, and remain in, a standby mode as long as CS  remains HIGH. This capability provides significant system-level power and cooling savings. The  low-power (LA version also offers a battery backup data retention capability where the circuit typically consumes only 1µW operating off a 2V battery.

All inputs and the output of the IDT6167LA are TTL-compatible and operate from a single 5V supply, thus simplifying system designs. The IDT6167 is packaged in a space-saving 20-pin, 300 mil Plastic DIP or CERDIP, Plastic 20-pin SOJ, providing high board-level packing densities.

Military grade product is manufactured in compliance with the latest revision of MIL-STD-883, Class B, making it ideally suited to military temperature applications demanding the highest level of performance and reliability.
