Product Details

Description

Features:

using the Master/Slave select when cascading more than one device
M/S = VIH for BUSY output flag on Master M/S = VIL for BUSY input on Slave
Busy and Interrupt Flag
On-chip port arbitration logic
Full on-chip hardware support of semaphore signaling between ports
Fully asynchronous operation from either port
TTL-compatible, single 5V (±10%) power supply
Available in ceramic 68-pin PGA, 68-pin PLCC, and an 80- pin TQFP
Industrial temperature range (40°C to +85°C) is available for selected speeds
True Dual-Ported memory cells which allow simultaneous reads of the same memory location
High-speed access
Commercial:12/15/20/25/35ns (max.)
Industrial: 20ns (max.)
Military: 20/25/35ns (max.)
Low-power operation
IDT7016S
Active: 750mW (typ.)
Standby: 5mW (typ.)
IDT7016L
Active: 750mW (typ.)
Standby: 1mW (typ.)

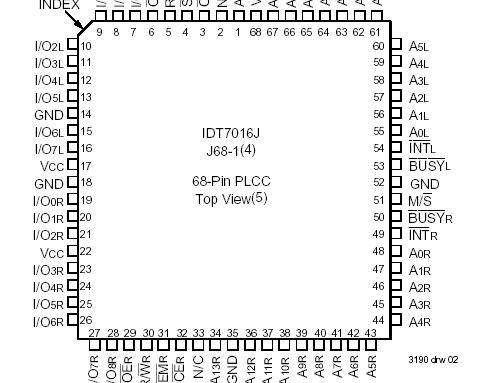

Pinout

Connection Diagram

NOTES:
1. All VCC pins must be connected to power supply.
2. All GND pins must be connected to ground supply.
3. Package body is approximately .95 in x .95 in x .17 in.
4. This package code is used to reference the package diagram.
5. This text does not imply orientation of Part-marking.

Specifications

Symbol	Rating	Com'l & Ind'l	Unit	Military
V_TERM	Terminal Voltage with respect to GND	0.5 to +4.5	V	-0.5 to +7.0
T_STG	Temperature Under Bias	55 to +125	°C	-65 to +135
T_STG	Storage Temperature	-65 to +150	mA	-65 to +150
I_OUT	DC Output Current	50	mA	50

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may
cause permanent damage to the device. This is a stress rating only and
functional operation of the device at these or any other conditions above
those indicated in the operational sections of this specification is not implied.
Exposure to absolute maximum rating conditions for extended periods may
affect reliability.
2. VTERM must not exceed Vcc + 10% for more than 25% of the cycle time or 10ns
maximum, and is limited to < 20mA for the period of VTERM > Vcc + 10%.

Description

The IDT7016S is a high-speed 16K x 9 Dual-Port Static RAM. The IDT7016S is designed to be used as stand-alone Dual-Port RAMs or as a combination MASTER/SLAVE Dual-Port RAM for 18-bit-or-more wider systems. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 18- bit or wider memory system applications results in full-speed, error-free operation without the need for additional discrete logic. This device provides two independent ports with separate control, address, and I/O pins that permit independent, asynchronous access for reads or writes to any location in memory.

An automatic power down feature controlled by CE permits the on-chip circuitry of each port to enter a very low standby power mode. Fabricated using IDT's CMOS high-performance technology, these devices typically operate on only 750mW of power.

The IDT7016S is packaged in a ceramic 68-pin PGA, a 64-pin PLCC and an 80-pinTQFP (Thin Quad Flatpack). Military grade product is manufactured in compliance with the latest revision of MIL-PRF-38535 QML, making it ideally suited to military temperature applications demanding the highest level of performance and reliability.
