IDT7016S/L

The IDT7016S/L is a high-speed 16K x 9 Dual-Port Static RAMs.  The IDT7016 is designed to be used as stand-alone Dual-Port RAM or as a combination MASTER/ SLAVE Dual-Port RAM for 18-bit-or-more wider systems.Using the IDT MASTER/SLAVE Dual-Port RAM approach in 18-bit or wider memory system applications results in full-speed, error-free operation without the need for additional discrete logic.

This IDT7016S/L provides two independent ports with separate control, address, and I/O pins that permit independent, asynchronous access for reads or writes to any location in memory.  An automatic power down feature controlled by CE permits the on-chip circuitry of each port to enter a very low standby power mode.

Fabricated using IDT's CMOS high-performance technol-ogy, these devices typically operate on only 750mW of power.

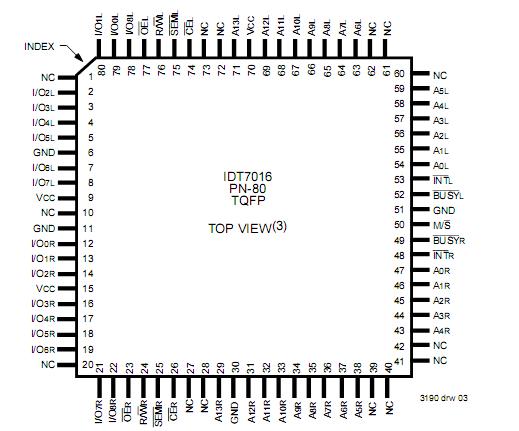

The IDT7016S/L is packaged in a ceramic 68-pin PGA, a 64-pin PLCC and an 80-pin TQFP (Thin Quad FlatPack). Military grade product is manufactured in compliance with the latest revision of MIL-STD-883, Class B, making it ideally suited to military temperature applications demanding the highest level of performance and reliability.
