IDT7025L

The IDT7025 is a high-speed 8K x 16 Dual-Port Static  RAM. The IDT7025 is designed to be used as a stand-alone128K-bit Dual-Port RAM or as a combination MASTER/ SLAVE Dual-Port RAM for 32-bit or more word systems. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 32-bit or wider memory system applications results in fullspeed, error-free operation without the need for additional discrete logic.

This device provides two independent ports with separate control, address, and I/O pins that permit independent, asynchronous access for reads or writes to any location in memory. An automatic power down feature controlled by Chip Enable ( CE ) permits the on-chip circuitry of each port to enter a very low standby power mode.

Fabricated using IDT's CMOS high-performance technology, these devices typically operate on only 750mW of power. Low-power (L) versions offer battery backup data retention capability with typical power consumption of 500mW from a 2V battery.

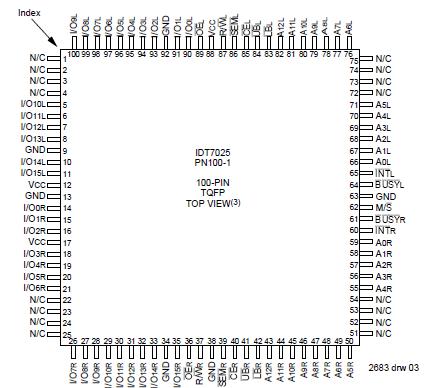

The IDT7025 is packaged in a ceramic 84-pin PGA, an 84- pin quad flatpack, an 84-pin PLCC, and a 100-pin TQFP. Military grade product is manufactured in compliance with the latest revision of MIL-STD-883, Class B, making it ideally suited to military temperature applications demanding the  highest level of performance and reliability.
