Features:

• True Dual-Ported memory cells which allow simultaneous
   access of the same memory location
• High-speed access
-Military: 25/35/55ns (max.)
-Commercial: 20/25/35/55ns (max.)
• Low-power operation
-IDT7026S
   Active: 750mW (typ.)
   Standby: 5mW (typ.)
-IDT7026L
   Active: 750mW (typ.)
   Standby: 1mW (typ.)
• Separate upper-byte and lower-byte control for
   multiplexed bus compatibility
• IDT7026 easily expands data bus width to 32 bits or
   more using the Master/Slave select when cascading
   more than one device
• M/S = H for BUSY output flag on Master,
   M/S = L for BUSY input on Slave
• On-chip port arbitration logic
• Full on-chip hardware support of semaphore signaling
   between ports
• Fully asynchronous operation from either port
• TTL-compatible, single 5V (±10%) power supply
• Available in 84-pin PGA and 84-pin PLCC
• Industrial temperature range (40°C to +85°C) is available,
   tested to military electrical specifications

Pinout

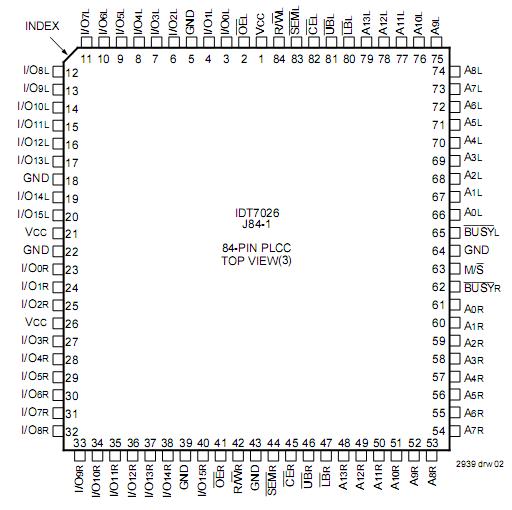

Connection Diagram

Specifications

Symbol	Rating	Commercial	Militaryt	Unit
V_TERM(2)	Terminal Voltage with Respect to GND	0.5 to+7.0	-0.5 to +70	V
T_A	Operating Temperature	0 to +70	55 to +125	oC
T_BIAS	Temperature Under Bias	55 to +125	-65 to +135	oC
T_STG	Storage Temperature	55 to +125	-65 to +150	oC
I_OUT	DC Output Current	50	50	mA

Description

The IDT7026S/L is a high-speed 16K x 16 Dual-Port Static RAM. The IDT7026 is designed to be used as a stand-alone Dual-Port RAM or as a combination MASTER/SLAVE Dual- Port RAM for 32-bit-or-more word systems. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 32-bit or wider memory system applications results in full-speed, error-free operation without the need for additional discrete logic.

This IDT7026S/L provides two independent ports with separate control, address, and I/O pins that permit independent, asynchronous access for reads or writes to any location inmemory. An automatic power down feature controlled by CE permits the on-chip circuitry of each port to enter a very low standby power mode.

Fabricated using IDT's CMOS high-performance technol-ogy, these devices typically operate on only 750mW of power.

The IDT7026S/L is packaged in a ceramic 84-pin PGA, and a 84-pin PLCC. Military grade product is manufactured in com- pliance with the latest revision of MIL-STD-883, Class B, making it ideally suited to military temperature applications demanding the highest level of performance and reliability.
