IDT7027S

Features: ` True Dual-Ported memory cells which allow simultaneous access of the same memory location` High-speed access Military: 25/35/55ns (max) Industrial: 25ns (max.) Commercial: 20/25/35/55ns (max.)` Low-power operation IDT7027S Active: 750mW (typ.) Standby: 5mW (typ.) IDT7027L Active: ...

product image

IDT7027S Picture
See larger image
SeekIC No. : 004372018 Detail

IDT7027S: Features: ` True Dual-Ported memory cells which allow simultaneous access of the same memory location` High-speed access Military: 25/35/55ns (max) Industrial: 25ns (max.) Commercial: 20/25/35/55...

IDT7027S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT7027S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` True Dual-Ported memory cells which allow simultaneous access of the same memory location
` High-speed access
  Military: 25/35/55ns (max)
  Industrial: 25ns (max.)
  Commercial: 20/25/35/55ns (max.)
` Low-power operation
  IDT7027S
      Active: 750mW (typ.)
      Standby: 5mW (typ.)
  IDT7027L
      Active: 750mW (typ.)
      Standby: 1mW (typ.)
` Separate upper-byte and lower-byte control for bus matching capability.
` Dual chip enables allow for depth expansion without
external logic
` IDT7027 easily expands data bus width to 32 bits or more using the Master/Slave select when cascading more than
one device
` M/S = VIH for BUSY output flag on Master,M/S = VIL for BUSY input on Slave
` Busy and Interrupt Flags
` On-chip port arbitration logic
` Full on-chip hardware support of semaphore signaling between ports
` Fully asynchronous operation from either port
` TTL-compatible, single 5V (±10%) power supply
` Available in 100-pin Thin Quad Flatpack (TQFP) and 108-pin Ceramic Pin Grid Array (PGA)
` Industrial temperature range (40°C to +85°C) is available for selected speeds


Pinout

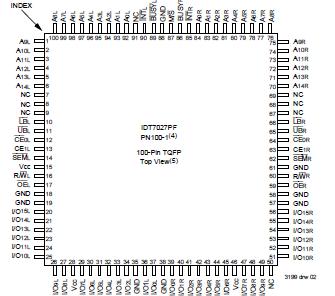

Connection Diagram


Specifications

Symbol Rating
Commercial
& Industrial
Military
Unit
VTERM(2) Terminal Voltage with Respect to GND
0.5 to +7.0
0.5 to +7.0
V
TBIAS Temperature Under Bias
55 to +125
65 to +135
TSTG Storage Temperature
65 to +150
65 to +150
IOUT DC Output Current
50
50
mA

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. VTERM must not exceed Vcc + 10% for more than 25% of the cycle time or 10ns maximum, and is limited to < 20mA for the period of VTERM > Vcc + 10%.


Description

The IDT7027S is a high-speed 32K x 16 Dual-Port Static RAM, designed to be used as a stand-alone 512K-bit Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 32-bit-or-more word systems. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 32- bit or wider memory system applications results in full-speed, error-free operation without the need for additional discrete logic.

The IDT7027S provides two independent ports with separate control, address, and I/O pins that permit independent, asynchronous access for reads or writes to any location in memory. An automatic power down feature controlled by the chip enables (CE0 and CE1) permits the on-chip circuitry of each port to enter a very low standby power mode.

Fabricated using IDT's CMOS high-performance technology, these devices typically operate on only 750mW of power. The IDT7027 is packaged in a 100-pin Thin Quad Flatpack (TQFP) and a 108-pin ceramic Pin Grid Array (PGA).

Military grade product of the IDT7027S is manufactured in compliance with the latest revision of MIL-PRF-38535 QML, making it ideally suited to military temperature applications demanding the highest level of performance and reliability.
