IDT7054L

Features: High-speed access Commercial: 20/25/35ns (max.) Industrial: 25ns (max.) Military: 25/35ns (max.)Low-power operation IDT7054S Active: 750mW (typ.) Standby: 7.5mW (typ.) IDT7054L Active: 750mW (typ.) Standby: 1.5mW (typ.)True FourPort memory cells which allow simultaneous access of the sam...

product image

IDT7054L Picture
See larger image
SeekIC No. : 004372024 Detail

IDT7054L: Features: High-speed access Commercial: 20/25/35ns (max.) Industrial: 25ns (max.) Military: 25/35ns (max.)Low-power operation IDT7054S Active: 750mW (typ.) Standby: 7.5mW (typ.) IDT7054L Active: 750...

IDT7054L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT7054L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

High-speed access
Commercial: 20/25/35ns (max.)
Industrial: 25ns (max.)
Military: 25/35ns (max.)
Low-power operation
IDT7054S
    Active: 750mW (typ.)
    Standby: 7.5mW (typ.)
IDT7054L
    Active: 750mW (typ.)
    Standby: 1.5mW (typ.)
True FourPort memory cells which allow simultaneous access of the same memory locations
Fully asynchronous operation from each of the four ports:P1, P2, P3, and P4
TTL-compatible; single 5V (±10%) power supply
Available in 128 pin Thin Quad Flatpack and 108 pin PGA packages
Industrial temperature range (40°C to +85°C) is available for selected speeds

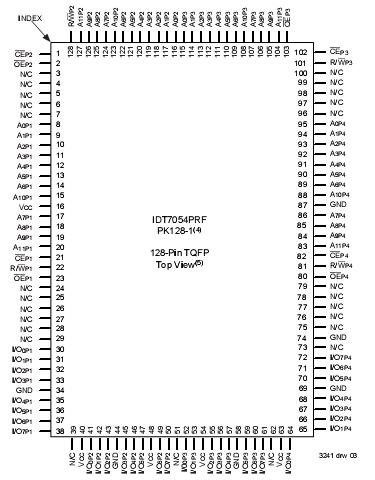

Pinout

Connection Diagram


Specifications

Symbol Rating Commercial
& Industrial		 Military Unit
VTERM(2)
 Terminal Voltage
with Respect
to GND		 -0.5 to +7.0 -0.5 to +7.0 v
TBIAS Temperature
Under Bias		 -55 to +125 -65 to +135
TSTG Storage
Temperature		 -65 to +150 -65 to +150
IOUT DC Output Current 50 50 mA



Description

  The IDT7054L is a high-speed 4K x 8 FourPort(TM) Static RAM designed to be used in systems where multiple access into a common RAM is required.This FourPort Static RAM offers increased system performance in multiprocessor systems that have a need to communicate in real time and also offers added benefit for high-speed systems in which multiple access is required in the same cycle.

  The IDT7054L is also designed to be used in systems where on-chip hardware port arbitration is not needed.This part lends itself to those systems which cannot tolerate wait states or are designed to be able to externally arbitrated or withstand contention when all ports simultaneously access the same FourPort RAM location.
