IDT709089S

True Dual-Ported memory cells which allow simultaneousaccess of the same memory location
High-speed clock to data access
   Commercial: 9/12/15ns (max.)
Low-power operation
   IDT709089S
      Active: 950mW (typ.)
      Standby: 5mW (typ.)
  IDT709089L
      Active: 950mW (typ.)
      Standby: 1mW (typ.)
Flow-Through or Pipelined output mode on either port viatheFT/PIPE pin
Counter enable and reset features
Dual chip enables allow for depth expansion withoutadditional logic
Full synchronous operation on both ports
  4ns setup to clock and 1ns hold on all control, data,and address inputs
    Data input, address, and control registers
  Fast 9ns clock to data out in the Pipelined output mode
  Self-timed write allows fast cycle time
  15ns cycle time, 66MHz operation in the Pipelinedoutput mode
TTL- compatible, single 5V (±10%) power supply
Industrial temperature range (40 to +85) is availablefor selected speeds

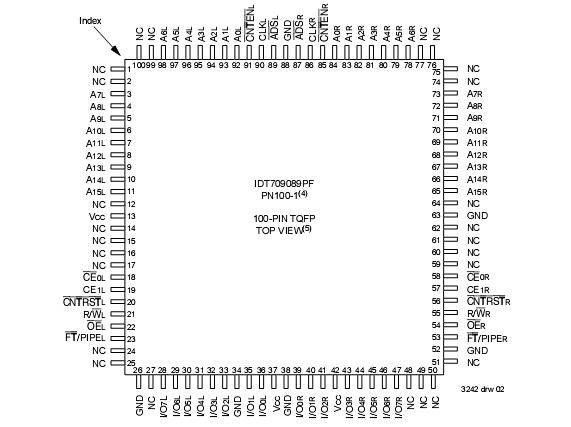

Available in 100-pin Thin Quad Flatpack (TQFP) package

The IDT709089S is a high-speed 64K x 8 bit synchronous  Dual-PortRAM. The memory array utilizes Dual-Port memory cells to allowsimultaneous access of any address from both ports. Registers on control,data, and address inputs provide minimal setup and hold times. The timinglatitude provided by this approach allows systems to be designed with veryshort cycle times.

With an input data register, the IDT709089S has been optimized forapplications having unidirectional or bidirectional data flow in bursts.An automatic power down feature, controlled by CE0 and CE1, permitsthe on-chip circuitry of each port to enter a very low standby powermode. Fabricated using IDT's CMOS high-performance technology,these devices typically operate on only 950mW of power.
