Part Number: IDT709369L
Description: The IDT709369 is a high-speed 16K x 18 bit synchronous Dual-Port RAM. The memory array utilizes Dual-P...
- Table of contents:
IDT709369L
-
Suppliers
DataSheet
General Description
IDT709369L General Description
The IDT709369 is a high-speed 16K x 18 bit synchronous Dual-Port RAM. The memory array utilizes Dual-Port memory cells to allow simultaneous access of any address from both ports. Registers on control, data, and address inputs provide minimal setup and hold times.
The timing latitude provided by this approach allows systems to be designed with very short cycle times. With an input data register, the IDT709369 has been optimized for applications having unidirectional or bidirectional data flow in bursts. An automatic power down feature, controlled by CE0 and CE1, permits the on-chip circuitry of each port to enter a very low standby power mode. Fabricated using IDT's CMOS high-performance technology, these devices typically operate on only 1.2W of power.
IDT709369L Maximum Ratings
|
Symbol |
Rating |
Commercial
& Industrial |
Unit |
|
VTERM |
Terminal Voltage with respect to GND |
-0.5 to +7.0 |
V |
|
VTER(2) |
Terminal Voltage |
-55 to +125 |
°C |
|
TSTG |
Temperature Under Bias |
-65 to +150
|
oC |
|
IOUT |
DC Output Current |
50
|
mA |
NOTES: 1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. VTERM must not exceed Vcc + 10% for more than 25% of the cycle time or 10ns maximum, and is limited to < 20mA for the period of VTERM > Vcc + 10%.
IDT709369L Features
True Dual-Ported memory cells which allow simultaneous access of the same memory location
High-speed clock to data access
Commercial: 7.5/9/12ns (max.)
Industrial: 9ns (max.)
Low-power operation
IDT709369L
Active: 1.2W (typ.)
Standby: 2.5mW (typ.)
Flow-Through or Pipelined output mode on either Port via the FT/PIPE pins
Counter enable and reset features
Dual chip enables allow for depth expansion without additional logic
Full synchronous operation on both ports
4ns setup to clock and 0ns hold on all control, data, and address inputs
Data input, address, and control registers
Fast 7.5ns clock to data out in the Pipelined output mode
Self-timed write allows fast cycle time
12ns cycle time, 83MHz operation in Pipelined output mode
Separate upper-byte and lower-byte controls for multiplexed bus and bus matching compatibility
TTL- compatible, single 5V (±10%) power supply
Industrial temperature range (40°C to +85°C) is available for selected speeds
Available in a 100-pin Thin Quad Flatpack (TQFP) package
High-speed clock to data access
Commercial: 7.5/9/12ns (max.)
Industrial: 9ns (max.)
Low-power operation
IDT709369L
Active: 1.2W (typ.)
Standby: 2.5mW (typ.)
Flow-Through or Pipelined output mode on either Port via the FT/PIPE pins
Counter enable and reset features
Dual chip enables allow for depth expansion without additional logic
Full synchronous operation on both ports
4ns setup to clock and 0ns hold on all control, data, and address inputs
Data input, address, and control registers
Fast 7.5ns clock to data out in the Pipelined output mode
Self-timed write allows fast cycle time
12ns cycle time, 83MHz operation in Pipelined output mode
Separate upper-byte and lower-byte controls for multiplexed bus and bus matching compatibility
TTL- compatible, single 5V (±10%) power supply
Industrial temperature range (40°C to +85°C) is available for selected speeds
Available in a 100-pin Thin Quad Flatpack (TQFP) package

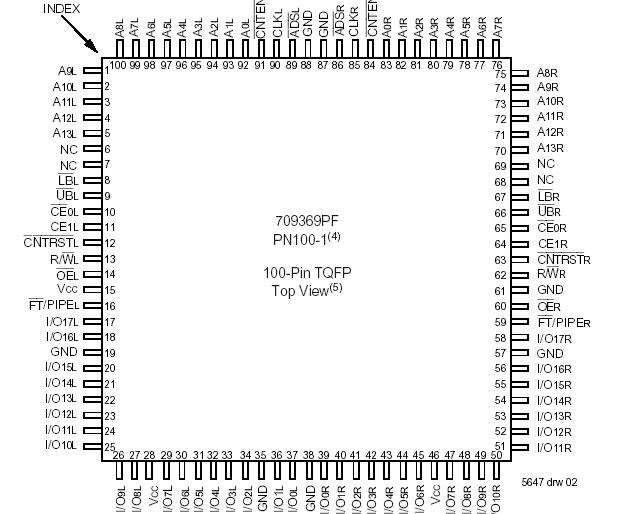

IDT709369L Connection Diagram
IDT709369L
