IDT709379L

True Dual-Ported memory cells which allow simultaneous access of the same memory location
High-speed clock to data access
Commercial: 7.5/9/12ns (max.)
Low-power operation
IDT709379L
Active: 1.2W (typ.)
Standby: 2.5mW (typ.)
Flow-Through or Pipelined output mode on either Port via the FT/PIPE pins
Counter enable and reset features
Dual chip enables allow for depth expansion without additional logic
Full synchronous operation on both ports
4ns setup to clock and 0ns hold on all control, data, an address inputs
Data input, address, and control registers
Fast 7.5ns clock to data out in the Pipelined output mode
Self-timed write allows fast cycle time
12ns cycle time, 83MHz operation in Pipelined output mode
 Separate upper-byte and lower-byte controls for multiplexed bus and bus matching compatibility
TTL- compatible, single 5V (±10%) power supply
Industrial temperature range (40°C to +85°C) is available for selected speeds

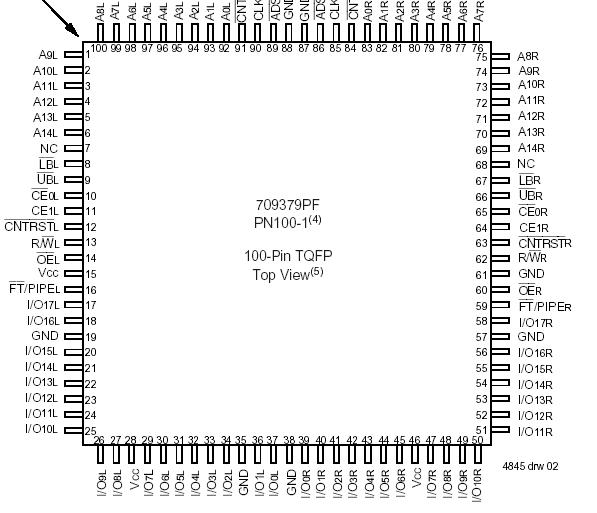

Available in a 100-pin Thin Quad Flatpack (TQFP) package
