` True Dual-Ported memory cells which allow simultaneous reads of the same memory location
` High-speed access IDT70T35/34L (IDT70T25/24L) Commercial: 20/25ns (max.) Industrial: 25ns (max.)
` Low-power operation IDT70T35/34L (IDT70T25/24L) Active: 200mW (typ.) Standby: 600W (typ.)
` Separate upper-byte and lower-byte control for multiplexed bus compatibility
` IDT70T35/34L (IDT70T25/24L) easily expands data bus width to 36 bits (32 bits) or more using the Master/Slave select when cascading more than one device
` M/S = VIH for BUSY output flag on Master M/S = VIL for BUSY input on Slave
` BUSY and Interrupt Flag
` On-chip port arbitration logic
` Full on-chip hardware support of semaphore signaling between ports
` Fully asynchronous operation from either port
` LVTTL-compatible, single 2.5V (±100mV) power supply
` Available in a 100-pin Thin Quad Flatpack (TQFP) package and 100-pin fine pitch Ball Grid Array (fpBGA)
`Industrial temperature range (-40°C to +85°C) is available for selected speeds
Symbol |
Rating |
Commercial &Industrial |
Unit |
VTERM(2) |
Terminal Voltage with Respect to GND |
-0.5 to +3.6 |
V |
TBIAS(3) |
Temperature Under Bias |
-55 to +125 |
oC |
TSTG |
Storage Temperature |
-65 to +150 |
oC |
TJN |
Junction Temperature |
+150 |
oC |
IOUT |
DC Output Current |
50 |
mA |
The IDT70T24L is a high-speed 8/4K x 18 (8/4K x 16) Dual-Port Static RAM. The IDT70T24L is designed to be used as a stand-alone Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 36-bit (32-bit) or wider memory system applications results in full-speed, error-free operation without the need for additional discrete logic.
This device provides two independent ports with separate control, address, and I/O pins that permit independent, asynchronous access for reads or writes to any location in memory. An automatic power down feature controlled by CE permits the on-chip circuitry of each port to enter a very low standby power mode.
Fabricated using IDT's CMOS high-performance technology, these devices typically operate on only 200mW of power.

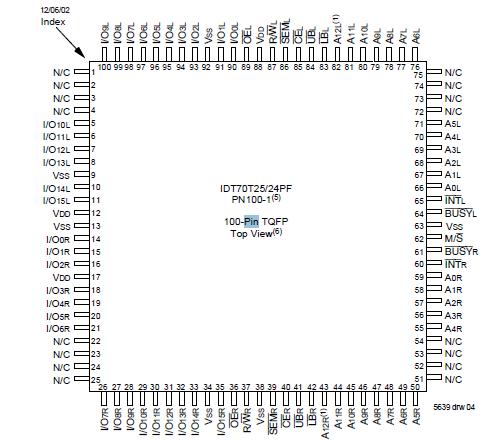

The IDT70T24L is packaged in a plastic 100-pin Thin Quad Flatpack and a 100-pin fine pitch Ball Grid Array.
