IDT7130SA

The IDT7130/IDT7140 are high-speed 1K x 8 Dual-Port  Static RAMs. The IDT7130 is designed to be used as a stand-alone 8-bit Dual-Port RAM or as a "MASTER" Dual-  Port RAM together with the IDT7140 "SLAVE" Dual-Port in16-bit-or-more word width systems. Using the IDT MASTER/ SLAVE Dual-Port RAM approach in 16-or-more-bit memory system applications results in full-speed, error-freeoperation without the need for additional discrete logic.

Both devices provide two independent ports with separate control, address, and I/O pins that permit independent asynchronous access for reads or writes to any location inmemory. An automatic power down feature, controlled byCE, permits the on chip circuitry of each port to enter a very low standby power mode.

Fabricated using IDT's CMOS high-performance technology, these devices typically operate on only 550mW of power. Low-power (LA) versions offer battery backup data retention capability, with each Dual-Port typically consuming 200mW from a 2V battery.

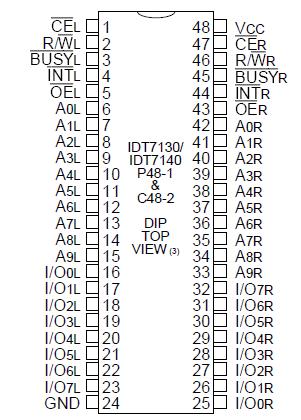

The IDT7130/IDT7140 devices are packaged in 48-pin sidebraze or plastic DIPs, LCCs, or flatpacks, 52-pin PLCC, and 64-pin TQFP and STQFP. Military grade product is manufactured in compliance with the latest revision of MILSTD- 883, Class B, making it ideally suited to military temperature applications demanding the highest level of performance and reliability.
