Features:

• High-speed access
- Military: 25/35/55/100ns (max.)
- Commercial: 25/35/55/100ns (max.)
- Commercial: 20ns only in PLCC for 7132
• Low-power operation
- IDT7132/42SA
Active: 550mW (typ.)
Standby: 5mW (typ.)
- IDT7132/42LA
Active: 550mW (typ.)
Standby: 1mW (typ.)
• Fully asynchronous operation from either port
• MASTER IDT7132 easily expands data bus width to 16-ormore
bits using SLAVE IDT7142
• On-chip port arbitration logic (IDT7132 only)
• BUSY output flag on IDT7132; BUSY input on IDT7142
• Battery backup operation -2V data retention
• TTL-compatible, single 5V ±10% power supply
• Available in popular hermetic and plastic packages
• Military product compliant to MIL-STD, Class B
• Standard Military Drawing # 5962-87002
• Industrial temperature range (40°C to +85°C) is available,
tested to miliary electrical specifications



Pinout

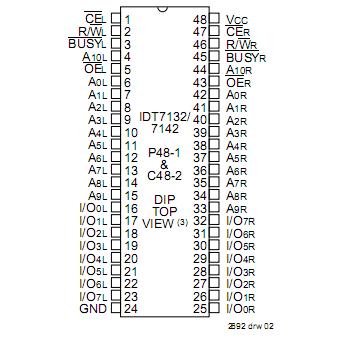

  Connection Diagram


Specifications

Symbo
Rating
Commercial
Military
Unit
VTERM(2)
Terminal Voltagwith Respect toGND
-0.5 to +7.0
-0.5 to +7.0
V
TA
Operating Temperature
0 to +70
-55 to +125
°C
TBIAS
Temperature Under Bias
-55 to +125
-65 to +135
TSTG
Storage Temperature
-55 to +125
-65 to +150
IOUT
DC Output Current
50
50
mA



Description

  The IDT7132SA/LA are high-speed 2K x 8 Dual-Port  Static RAMs. The IDT7132SA/LA is designed to be used as a standalone 8-bit Dual-Port RAM or as a"MASTER" Dual-Port RAM together with the IDT7142 "SLAVE" Dual-Port in 16-bit-ormore word width systems. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 16-or-more-bit memory system applications results in full-speed, error-free operation without

  the need for additional discrete logic. Both devices provide two independent ports with separate control, address, and l/O pins that permit independent, asynchronous access for reads or writes to any location in memory. An automatic power down feature, controlled by CE permits

  the on-chip circuitry of each port to enter a very low standby power mode. Fabricated using IDT's CMOS high-performance technology,
  these devices typically operate on only 550mW of power.Low-power (LA) versions offer battery backup data retention capability, with each Dual-Port typically consuming 200mW from a 2V battery.

  The IDT7132SA/LA devices are packaged in a 48-pin  sidebraze or plastic DIPs, 48-pin LCCs, 52-pin PLCCs, and 48-lead flatpacks. Military grade product is manufactured in compliance with the latest revision of MIL-STD-883, Class B, making it ideally suited to military temperature applications demanding the highest level of performance and reliability.
