Function: Asynchronous
Operating Temperature: 0°C ~ 70°C
Packaging: Tube
Voltage - Supply: 4.5 V ~ 5.5 V
Mounting Type: Surface Mount
Series: 7200
Manufacturer: IDT, Integrated Device Technology Inc
Data Rate: 15MHz
Access Time: 50ns
Package / Case: 32-LCC (J-Lead)
Supplier Device Package: 32-PLCC (13.97x11.43)
Memory Size: 36K (4K x 9)
Pinout

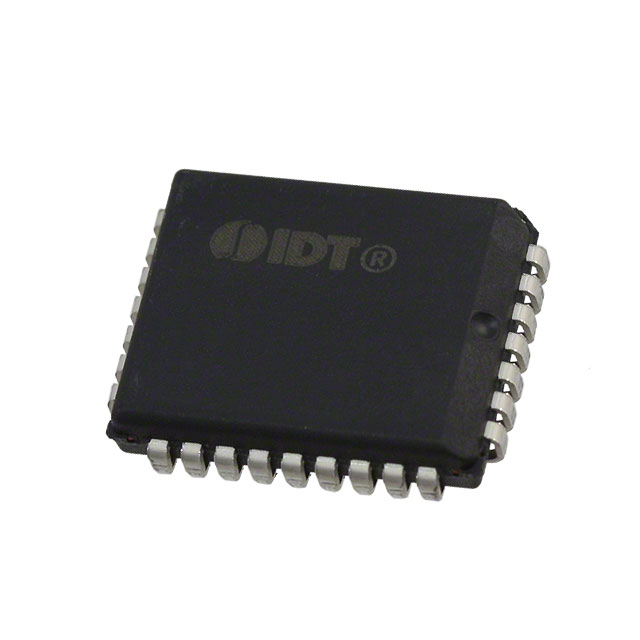

DescriptionThe IDT7204L50J is one member of the IDT7204 family which is designed as the monolithic dual-port memory buffer that uses Full and Empty flags to prevent data overflow and underflow and expansion logic to allow for unlimited expansion capability in both word size and depth. It is fabricated using IDT's high-speed CMOS technology.
Features of the IDT7204L50J are:(1)Asynchronous and simultaneous read and write; (2)Fully expandable in both word depth and width; (3)Pin and functionally compatible with IDT720X family; (4)Status Flags: Empty, Half-Full, Full; (5)Retransmit capability; (6)High-performance CMOS technology; (7)Military product compliant to MIL-STD-883, Class B; (8)Standard Military Drawing for #5962-88669 (IDT7203), 5962-89567 (IDT7203), and 5962-89568 (IDT7204) are listed on this function; (9)Industrial temperature range (-40 to +85 ) is available,; (10)tested to military electrical specifications.
The absolute maximum ratings of the IDT7204L50J can be summarized as:(1)terminal voltage with respect to GND:0.5 to +7.0 V;(2)operating temperature: 0 to +70 °C;(3)temperature under bias:55 to +125 °C;(4)storage temperature:55 to +125 °C;(5)DC Output Current: 50 mA.
The electrical characteristics of the IDT7204L50J can be summarized as:(1)Input Leakage Current (Any Input): -1 to +1 uA;(2)Output Leakage Current: 10 to 10 uA;(3)Output Logic "1" Voltage IOH = 2mA: 2.4 V;(4)Output Logic "0" Voltage IOL = 8mA: 0.4 V;(5)Active Power Supply Current: 120 mA. If you want to know more information about it, please download the datasheet in www.seekic.com or www.chinaicmart.com .
Parameters: | Technical/Catalog Information | IDT7204L50J |
| Vendor | IDT, Integrated Device Technology Inc |
| Category | Undefined Category |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | IDT7204L50J
IDT7204L50J
|
IDT7204L50J Data Sheet
