General Description
IDT72V73260 General Description
The IDT72V73260 has a non-blocking switch capacity of 16,384 x 16,384 channels at 32.768Mb/s. With 32 inputs and 32 outputs, programmable per stream control, and a variety of operating modes the IDT72V73260 is designed for the TDM time slot interchange function in either voice or data applications.
Some of the main features of the IDT72V73260 are LOW power 3.3 Volt operation, automatic ST-BUS® /GCI sensing, memory block programming,simple microprocessor interface , JTAG Test Access Port (TAP) and per stream programmable input offset delay, variable or constant throughput modes, output enable and processor mode.
IDT72V73260 Maximum Ratings
| Symbol | Parameter | Min. | Max. | Unit |
| VCC | Supply | Voltage | -0.5 +4.0 | V |
|---|---|---|---|---|
| Vi | Voltage on Digital Inputs | GND -0.3 | VCC +0.3 | V |
| IO | Current at Digital Outputs | -50 | 50 | mA |
| TS | Storage Temperature | -55 | +125 | |
| PD | Package Power Dissapation | - | 2 | W |
IDT72V73260 Features
• 16K x 16K non-blocking switching at 32.768Mb/s
• 32 serial input and output streams
• Accepts single-bit single-data streams at 32.768Mb/s
• Per-channel Variable Delay Mode for low-latency applications
• Per-channel Constant Delay Mode for frame integrity applications
• Automatic identification of ST-BUS® and GCI bus interfaces
• Automatic frame offset delay measurement
• Per-stream single data frame delay offset programming
• Per-channel high-impedance output control
• Direct microprocessor access to all internal memories
• Memory block programming for quick setup
• IEEE-1149.1 (JTAG) Test Port
• 3.3V Power Supply
• Available in 144-pin (13mm x 13mm) Plastic Ball Grid Array (PBGA) and 144-pin (20mm x 20mm) Thin Quad Flatpack (TQFP)
• Operating Temperature Range -40°C to +85°C

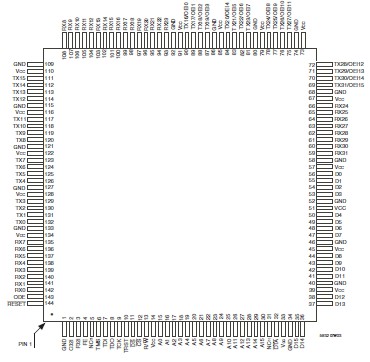

IDT72V73260 Connection Diagram
IDT72V73260
