General Description
IDT72V8988 General Description
The IDT72V8988 is an ST-BUS®/GCI compatible digital switch controlled by a microprocessor. The IDT72V8988 can handle as many as 128, 64 Kbit/s input and output channels. Those 128 channels are divided into 4 serial inputs and outputs, each of which consists of 32 channels. The IDT72V8988 provides per-channel variable or constant throughput delay modes and microprocessor read and write access to individual channels. As an important function of a digital switch is to maintain sequence integrity and minimize throughput delay, the IDT72V8988 is an ideal solution for most switching needs.
IDT72V8988 Maximum Ratings
| Symbol | Parameter | Min. | Max. | Unit |
| VCC | Supply Voltage | -0.3 | 5.0 | V |
| Vi | Voltage on Digital Inputs | GND -0.3 | VCC +0.5 | V |
| VO | Voltage on Digital Outputs | GND -0.3 | VCC +0.3 | V |
| IO | Current at Digital Outputs | 20 | mA | |
| TS | Storage Temperature | -55 | +125 | °C |
| PD | Package Power Dissapation | 2 | W |
NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause
permanent damage to the device. This is a stress rating only and functional operation of
the device at these or any other conditions above those indicated in the operational sections
of this specifications is not implied. Exposure to absolute maximum rating conditions for
extended periods may affect reliability.
IDT72V8988 Features
• 128 x 128 channel non-blocking switch
• Automatic signal identification (ST-BUS®, GCI)
• 4 RX inputs-32 channels at 64 Kbit/s per serial line
• 4 TX outputs-32 channels at 64 Kbit/s per serial line
• Three-state serial outputs
• Microprocessor Interface (8-bit data bus)
• Frame Integrity for data applications
• 3.3V Power Supply
• Available in 44-pin Plastic Leaded Chip Carrier (PLCC), and
44-pin Plastic Quad Flatpack (PQFP)
• Operating Temperature Range -40°C to +85°C
• 3.3V I/O with 5V Tolerant Inputs
• Automatic signal identification (ST-BUS®, GCI)
• 4 RX inputs-32 channels at 64 Kbit/s per serial line
• 4 TX outputs-32 channels at 64 Kbit/s per serial line
• Three-state serial outputs
• Microprocessor Interface (8-bit data bus)
• Frame Integrity for data applications
• 3.3V Power Supply
• Available in 44-pin Plastic Leaded Chip Carrier (PLCC), and
44-pin Plastic Quad Flatpack (PQFP)
• Operating Temperature Range -40°C to +85°C
• 3.3V I/O with 5V Tolerant Inputs

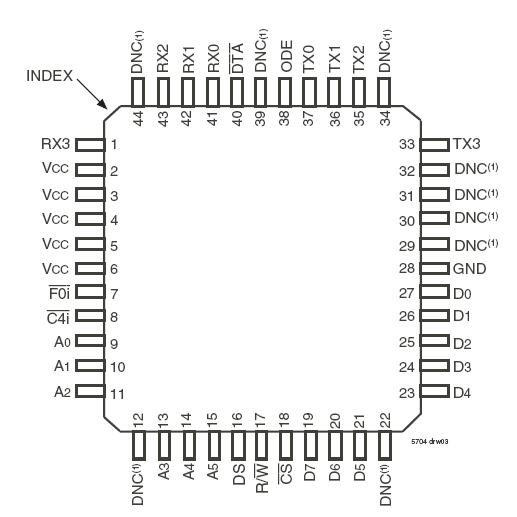

IDT72V8988 Connection Diagram
IDT72V8988
