Part Number: IDT74ALVC162244
Description: This 16-bit buffer/driver is built using advanced dual metal CMOS technology. The ALVC162244 is design...
- Table of contents:
IDT74ALVC162244
-
Suppliers
DataSheet
General Description
IDT74ALVC162244 General Description
This 16-bit buffer/driver is built using advanced dual metal CMOS technology. The ALVC162244 is designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. It provides true outputs and symmetrical active-low output-enable (OE) inputs.
The ALVC162244 has series resistors in the device output structure which will significantly reduce line noise when used with light loads. This driver has been designed to drive ±12mA at the designated threshold levels.
IDT74ALVC162244 Maximum Ratings
|
Symbol |
Rating |
Max
|
Unit |
|
VTERM (VDD) |
VDD Terminal Voltage with Respect to GND |
0.5 to +4.6 |
V |
|
VTERM(2) |
VDDQ Terminal Voltage with Respect to GND |
0.5 to VCC+0.5 |
V |
|
VTERM(2) (INPUTS and I/O's) |
Input and I/O Terminal Voltage with Respect to GND |
65 to +150
|
°C |
|
IOUT |
DC Output Current |
50 to +50
|
°C |
|
TSTG |
Continuous Clamp Current, VI < 0 or VI > VCC |
-65 to +150
|
mA |
|
TJN |
Junction Temperature |
+ 150
|
mA |
|
IOK |
Continuous Clamp Current, VO < 0 |
-50
|
mA |
|
ICC ISS |
Continuous Current through VCC or GND |
±100
|
mA |
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. VCC terminals.
3. All terminals except VCC.
IDT74ALVC162244 Features
• 0.5 MICRON CMOS Technology
• Typical tSK(o) (Output Skew) < 250ps
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 3.3V ± 0.3V, Normal Range
• VCC = 2.7V to 3.6V, Extended Range
• VCC = 2.5V ± 0.2V
• CMOS power levels (0.4µ W typ. static)
• Rail-to-Rail output swing for increased noise margin
• Available in SSOP, TSSOP, and TVSOP packages
• Typical tSK(o) (Output Skew) < 250ps
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 3.3V ± 0.3V, Normal Range
• VCC = 2.7V to 3.6V, Extended Range
• VCC = 2.5V ± 0.2V
• CMOS power levels (0.4µ W typ. static)
• Rail-to-Rail output swing for increased noise margin
• Available in SSOP, TSSOP, and TVSOP packages
IDT74ALVC162244 Typical Application
• 3.3V high speed systems
• 3.3V and lower voltage computing systems
• 3.3V and lower voltage computing systems

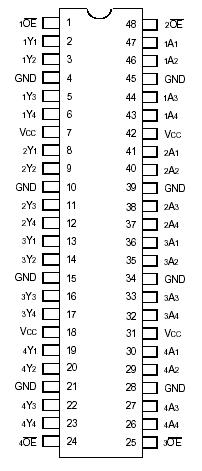

IDT74ALVC162244 Connection Diagram
IDT74ALVC162244
