Part Number: IDT74ALVC162245
Description: This 16-bit bus transceiver is built using advanced dual metal CMOS technology. The ALVC162245 is desi...
- Table of contents:
IDT74ALVC162245
-
Suppliers
DataSheet
General Description
IDT74ALVC162245 General Description
This 16-bit bus transceiver is built using advanced dual metal CMOS technology. The ALVC162245 is designed for asynchronous communication between data buses. The control-function implementation minimizes external timing requirements.
This device can be used as two 8-bit transceivers or one 16-bit transceiver. It allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.
The ALVC162245 has series resistors in the device output structure of the "A" port which will significantly reduce line noise when used with light loads. This driver has been designed to drive ±12mA at the designated threshold levels. The "B" port has a ±24mA driver.
IDT74ALVC162245 Maximum Ratings
| Symbol | Description | Max | Unit |
| VTERM(2) | Terminal Voltage with Respect to GND | 0.5 to +4.6 | V |
| VTERM(3) | Terminal Voltage with Respect to GND | 0.5 to VCC+0.5 | V |
| TSTG | Storage Temperature | 65 to +150 | °C |
| IOUT | DC Output Current | 50 to +50 | mA |
| IIK | Continuous Clamp Current, VI < 0 or VI > VCC |
±50 | mA |
| IOK | Continuous Clamp Current, VO < 0 | 50 | mA |
| ICC ISS |
Continuous Current through each VCC or GND |
±100 | mA |
IDT74ALVC162245 Features
• 0.5 MICRON CMOS Technology
• Typical tSK(o) (Output Skew) < 250ps
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 3.3V ± 0.3V, Normal Range
• VCC = 2.7V to 3.6V, Extended Range
• VCC = 2.5V ± 0.2V
• CMOS power levels (0.4µ W typ. static)
• Rail-to-Rail output swing for increased noise margin
• Available in SSOP, TSSOP, and TVSOP packages
• Typical tSK(o) (Output Skew) < 250ps
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 3.3V ± 0.3V, Normal Range
• VCC = 2.7V to 3.6V, Extended Range
• VCC = 2.5V ± 0.2V
• CMOS power levels (0.4µ W typ. static)
• Rail-to-Rail output swing for increased noise margin
• Available in SSOP, TSSOP, and TVSOP packages
IDT74ALVC162245 Typical Application
• 3.3V high speed systems
• 3.3V and lower voltage computing systems
• 3.3V and lower voltage computing systems

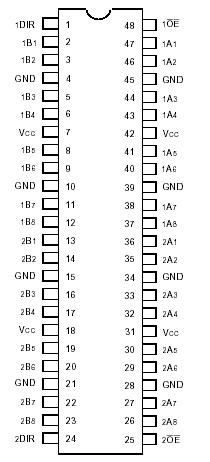

IDT74ALVC162245 Connection Diagram
IDT74ALVC162245
