Part Number: IDT74ALVC245
Description: This octal bus transceiver is built using advanced dual metal CMOS technology. The three-state control...
- Table of contents:
IDT74ALVC245
-
Suppliers
DataSheet
General Description
IDT74ALVC245 General Description
This octal bus transceiver is built using advanced dual metal CMOS technology. The three-state controls are designed to operate this device in a single-byte mode. All inputs are designed with hysteresis for improved noise margin.
The ALVC245 is designed for asynchronous communication between data buses. The device transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input.
The ALVC245 has been designed with a ±24mA output driver. This driver is capable of driving a moderate to heavy load while maintaining speed performance.
IDT74ALVC245 Maximum Ratings
|
Symbol |
Description |
Max |
Unit |
|
VTERM(2) |
Terminal Voltage with Respect to GND |
0.5 to +4.6 |
V |
|
VTERM(3) |
Terminal Voltage with Respect to GND |
0.5 to VCC+0.5 |
V |
|
TSTG |
Storage Temperature |
65 to +150 |
|
|
IOUT |
DC Output Current |
50 to +50 |
mA |
|
IIK |
Continuous Clamp Current, VI < 0 or VI > VCC |
±50 |
mA |
|
IOK |
Continuous Clamp Current, VO < 0 |
50 |
mA |
|
ICC ISS |
Continuous Current through each VCC or GND |
±100 |
mA |
permanent damage to the device. This is a stress rating only and functional operation
of the device at these or any other conditions above those indicated in the operational
sections of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect reliability.
2. VCC terminals.
3. All terminals except VCC.
IDT74ALVC245 Features
• 0.5 MICRON CMOS Technology
• Typical tSK(o) (Output Skew) < 250ps
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 3.3V ± 0.3V, Normal Range
• VCC = 2.7V to 3.6V, Extended Range
• VCC = 2.5V ± 0.2V
• CMOS power levels (0.4µ W typ. static)
• Rail-to-Rail output swing for increased noise margin
• Available in SOIC and TSSOP packages
• Typical tSK(o) (Output Skew) < 250ps
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 3.3V ± 0.3V, Normal Range
• VCC = 2.7V to 3.6V, Extended Range
• VCC = 2.5V ± 0.2V
• CMOS power levels (0.4µ W typ. static)
• Rail-to-Rail output swing for increased noise margin
• Available in SOIC and TSSOP packages
IDT74ALVC245 Typical Application
• 3.3V high speed systems
• 3.3V and lower voltage computing systems
• 3.3V and lower voltage computing systems

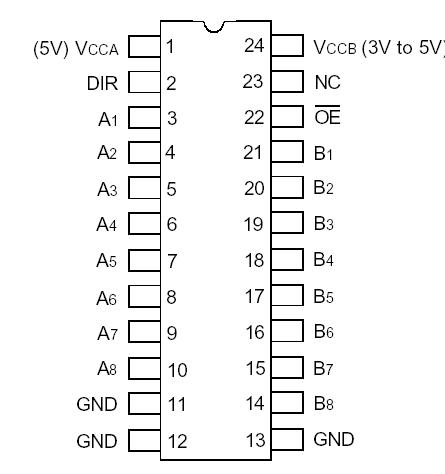

IDT74ALVC245 Connection Diagram
IDT74ALVC245
PDF/DataSheet Download
- Datasheet: IDT74ALVC245
- File Size: 69181 KB
- Manufacturer: IDT [Integrated Device Technology]
- Click here to Download
