Part Number: IDT74ALVCF162835A
Description: This 18-bit universal bus driver is built using advanced dual metal CMOS technology. Data flow from A ...
- Table of contents:
IDT74ALVCF162835A
-
Suppliers
DataSheet
General Description
IDT74ALVCF162835A General Description
This 18-bit universal bus driver is built using advanced dual metal CMOS technology. Data flow from A to Y is controlled by the output-enable (OE) input. The device operates in the transparent mode when the latch-enable (LE) input is high. The A data is latched if the clock (CLK) input is held at a high or low logic level. If LE is low, the A data is stored in the latch flip-flop on the low-to-high transition of CLK. When OE is high, the outputs are in the high-impedance state.
The ALVCF162835A has series resistors in the device output structure which will reduce switching noise in 128MB and 256MB SDRAM modules.Designed with a drive capability of ±18mA, the ALVCF162835A is a midway drive between the ALVC162835 (±12mA) and ALVC16835 (±24mA).
The ALVCF162835A is a faster version of the ALVCF162835 or ALVC162835. It is suitable for PC133 applications and particularly SDRAM Modules clocked at 133 MHz.
IDT74ALVCF162835A Maximum Ratings
|
Symbol |
Description |
Max |
Unit |
|
VTERM(2) |
Terminal Voltage with Respect to GND |
0.5 to +4.6 |
V |
|
VTERM(3) |
Terminal Voltage with Respect to GND |
0.5 to VCC+0.5 |
V |
|
TSTG |
Storage Temperature |
65 to +150 |
|
|
IOUT |
DC Output Current |
50 to +50 |
mA |
|
IIK |
Continuous Clamp Current, VI < 0 or VI > VCC |
±50 |
mA |
|
IOK |
Continuous Clamp Current, VO < 0 |
50 |
mA |
|
ICC ISS |
Continuous Current through each VCC or GND |
±100 |
mA |
permanent damage to the device. This is a stress rating only and functional operation
of the device at these or any other conditions above those indicated in the operational
sections of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect reliability.
2. VCC terminals.
3. All terminals except VCC.
IDT74ALVCF162835A Features
• 0.5 MICRON CMOS Technology
• Typical tSK(o) (Output Skew) < 250ps
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 3.3V ± 0.3V, Normal Range
• VCC = 2.7V to 3.6V, Extended Range
• VCC = 2.5V ± 0.2V
• CMOS power levels (0.4µ W typ. static)
• Rail-to-Rail output swing for increased noise margin
• Available in TSSOP and TVSOP packages
• Typical tSK(o) (Output Skew) < 250ps
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 3.3V ± 0.3V, Normal Range
• VCC = 2.7V to 3.6V, Extended Range
• VCC = 2.5V ± 0.2V
• CMOS power levels (0.4µ W typ. static)
• Rail-to-Rail output swing for increased noise margin
• Available in TSSOP and TVSOP packages
IDT74ALVCF162835A Typical Application
• SDRAM Modules
• PC Motherboards
• Workstations
• PC Motherboards
• Workstations

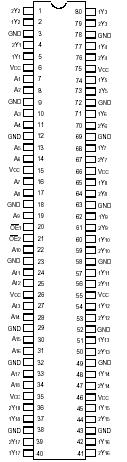

IDT74ALVCF162835A Connection Diagram
IDT74ALVCF162835A
