Part Number: IDT74ALVCHS162830
Description: This 1-bit to 2-bit address driver is built using advanced dual metal CMOS technology. Diodes to VCC h...
- Table of contents:
IDT74ALVCHS162830
-
Suppliers
DataSheet
General Description
IDT74ALVCHS162830 General Description
This 1-bit to 2-bit address driver is built using advanced dual metal CMOS technology. Diodes to VCC have been added on the inputs to clamp overshoot.
The ALVCHS162830 has series resistors in the device output structure which will significantly reduce line noise when used with light loads. This driver has been designed to drive ±12mA at the designated threshold levels.
The ALVCHS162830 has "bus-hold" which retains the inputs' last state whenever the input bus goes to a high impedance. This prevents floating inputs and eliminates the need for pull-up/down resistors.
IDT74ALVCHS162830 Maximum Ratings
|
Symbol |
Description |
Max |
Unit |
|
VTERM(2) |
Terminal Voltage with Respect to GND |
0.5 to +4.6 |
V |
|
VTERM(3) |
Terminal Voltage with Respect to GND |
0.5 to VCC+0.5 |
V |
|
TSTG |
Storage Temperature |
65 to +150 |
|
|
IOUT |
DC Output Current |
50 to +50 |
mA |
|
IIK |
Continuous Clamp Current, VI < 0 or VI > VCC |
±50 |
mA |
|
IOK |
Continuous Clamp Current, VO < 0 |
50 |
mA |
|
ICC ISS |
Continuous Current through each VCC or GND |
±100 |
mA |
permanent damage to the device. This is a stress rating only and functional operation
of the device at these or any other conditions above those indicated in the operational
sections of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect reliability.
2. VCC terminals.
3. All terminals except VCC.
IDT74ALVCHS162830 Features
FEATURES:
• 0.5 MICRON CMOS Technology
• Typical tSK(o) (Output Skew) < 250ps
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 3.3V ± 0.3V, Normal Range
• VCC = 2.7V to 3.6V, Extended Range
• VCC = 2.5V ± 0.2V
• CMOS power levels (0.4µ W typ. static)
• Rail-to-Rail output swing for increased noise margin
• Available in TVSOP package
• 0.5 MICRON CMOS Technology
• Typical tSK(o) (Output Skew) < 250ps
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 3.3V ± 0.3V, Normal Range
• VCC = 2.7V to 3.6V, Extended Range
• VCC = 2.5V ± 0.2V
• CMOS power levels (0.4µ W typ. static)
• Rail-to-Rail output swing for increased noise margin
• Available in TVSOP package
IDT74ALVCHS162830 Typical Application
• SDRAM Modules
• PC Motherboards
• Workstations
• PC Motherboards
• Workstations

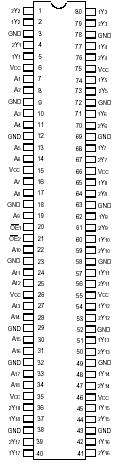

IDT74ALVCHS162830 Connection Diagram
IDT74ALVCHS162830
PDF/DataSheet Download
- Datasheet: IDT74ALVCHS162830
- File Size: 71842 KB
- Manufacturer: IDT [Integrated Device Technology]
- Click here to Download
- ·IDT 79R3081
- IDT
- RISController?
- 914564 KB
- ·IDT 79R3081E
- IDT
- RISController?
- 914564 KB
- ·IDT 79RV3081
- IDT
- RISController?
- 914564 KB
- ·IDT 79RV3081E
- IDT
- RISController?
- 914564 KB
- ·IDT RC5000
- IDT
- MULTI-ISSUE 64-BIT MICROPROCESSOR
- 470729 KB
- ·IDT2305
- IDT [Integrated Device Technology]
- 3.3V ZERO DELAY CLOCK BUFFER
- 135648 KB
- ·IDT2305-1
- IDT [Integrated Device Technology]
- 3.3V ZERO DELAY CLOCK BUFFER
- 135648 KB
- ·IDT2305-1DC
- IDT [Integrated Device Technology]
- 3.3V ZERO DELAY CLOCK BUFFER
- 135648 KB
IDT74ALVCHS162830 Relative Products

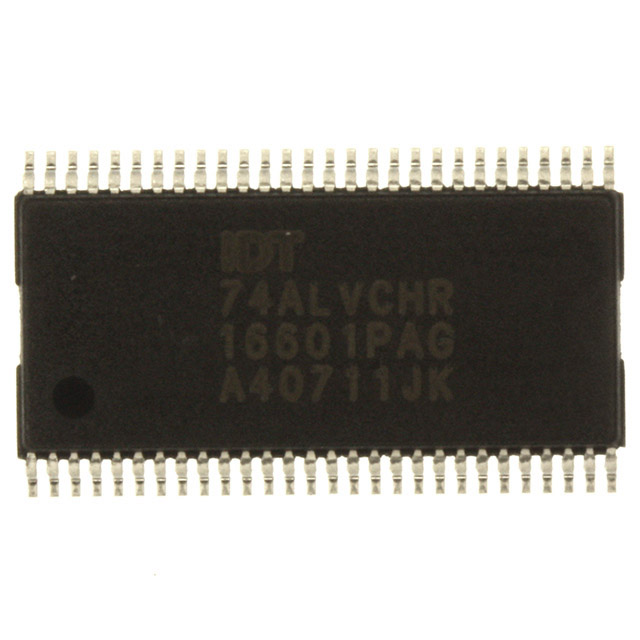

IDT74ALVCHR16601PAG8
