IDT74CBTLV16211
-
Suppliers
DataSheet
General Description
IDT74CBTLV16211 General Description
The CBTLV16211 operates as a single 24-bit bus switch or as a dual 12-bit bus switch, which provides high speed switching. This device has very low ON resistance, resulting in under 250ps propagation delay throughout the switch. When Output Enable (OE) is low, the corresponding 12-bit bus switch is on and port A is connected to Port B. When OEis high, the switch is off and a high impedance exists between Port A and Port B. To ensure the high-impedance state during power up or power down, OEshould be tied to VCC through a pullup resistor.
IDT74CBTLV16211 Maximum Ratings
|
Symbol |
Description |
Max |
Unit |
|
VCC |
Supply Voltage Range |
0.5 to 4.6 |
V |
|
VI |
Input Voltage Range |
0.5 to 4.6 |
V |
|
|
Continuous Channel Current |
128 |
mA |
|
IIK |
Input Clamp Current, VI/O < 0 |
-50 |
mA |
|
TSTG |
Storage Temperature Range |
65 to +150 |
°C |
NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
IDT74CBTLV16211 Features
• 5 A/B bi-directional switch
• Isolation Under Power-Off Conditions
• Over-voltage tolerant
• Latch-up performance exceeds 100mA
• VCC = 2.3V - 3.6V, normal range
• ESD >2000V per MIL-STD-883, Method 3015; >200V using machine model (C = 200pF, R = 0)
• Available in SSOP, TSSOP, and TVSOP packages
• Isolation Under Power-Off Conditions
• Over-voltage tolerant
• Latch-up performance exceeds 100mA
• VCC = 2.3V - 3.6V, normal range
• ESD >2000V per MIL-STD-883, Method 3015; >200V using machine model (C = 200pF, R = 0)
• Available in SSOP, TSSOP, and TVSOP packages
IDT74CBTLV16211 Typical Application
• 3.3V High Speed Bus Switching and Bus Isolation

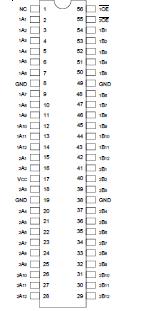

IDT74CBTLV16211 Connection Diagram
