Part Number: IDT74CBTLV3244
Description: The octal bus switch has standard 244 pinouts. The CBTLV3244 is designed for asynchronous communicatio...
- Table of contents:
IDT74CBTLV3244
-
Suppliers
DataSheet
General Description
IDT74CBTLV3244 General Description
The octal bus switch has standard 244 pinouts. The CBTLV3244 is designed for asynchronous communication between data buses. Sets of four switches are controlled by one output Enable (OE). When OEis low, the set of four bus switches is on and port A is connected to port B. When OEis high, the set of four bus switches is off and a high impedance exists between port A and port B.
To ensure the high-impedance state during power up or power down, both OEs should be tied to VCC through a pullup resistor.
IDT74CBTLV3244 Maximum Ratings
|
Symbol |
Description |
Max |
Unit |
|
VCC |
Supply Voltage Range |
0.5 to 4.6 |
V |
|
VI |
Input Voltage Range |
0.5 to 4.6 |
V |
|
|
Continuous Channel Current |
128 |
mA |
|
IIK |
Input Clamp Current, VI/O < 0 |
-50 |
mA |
|
TSTG |
Storage Temperature Range |
65 to +150 |
°C |
NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
IDT74CBTLV3244 Features
· Pin-out compatible with standard '244 logic
· 5W A/B bidirectional switch
· Isolation Under Power-Off Conditions
· Over-voltage tolerant
· Latch-up performance exceeds 100mA
· VCC = 2.3V - 3.6V, Normal Range
· ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
· Available in SSOP, QSOP, and TSSOP packages
· 5W A/B bidirectional switch
· Isolation Under Power-Off Conditions
· Over-voltage tolerant
· Latch-up performance exceeds 100mA
· VCC = 2.3V - 3.6V, Normal Range
· ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
· Available in SSOP, QSOP, and TSSOP packages
IDT74CBTLV3244 Typical Application
· 3.3V High Speed Bus Switching and Bus Isolation

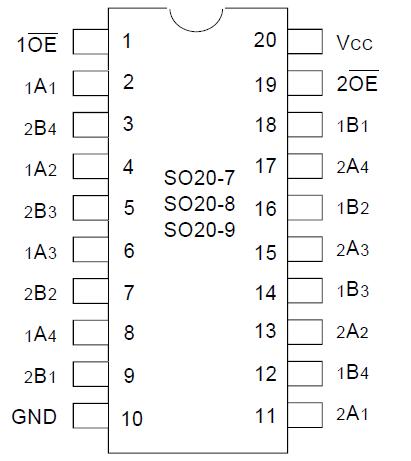

IDT74CBTLV3244 Connection Diagram
IDT74CBTLV3244
