Part Number: IDT74CBTLV3245









Description: The octal bus switch has standard 245 pinouts. The CBTLV3245 is designed for asynchronous communication between data bu...


Urgent Purchase

IDT74CBTLV3245 General Description


The octal bus switch has standard 245 pinouts. The CBTLV3245 is designed for asynchronous communication between data buses. When Output Enable (OE) is low, the 8-bit bus switch is on and port A is connected to Port B. When OE is high, the switch is off and a high impedance exists between Port A and Port B.
To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor.

IDT74CBTLV3245 Maximum Ratings

Symbol
Description
Max.
Unit
VCC SupplyVoltage Range
0.5 to +4.6
V
VI Input Voltage Range
0.5 to +4.6
V
  Continuous Channel Current
128
mA
IIK Input Clamp Current, VI/O < 0
-50
mA
TSTG Storage TemperatureRange
65 to +150
° C
NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

IDT74CBTLV3245 Features

Pin-out compatible with standard '245 logic
5 A/B bidirectional switch
Isolation Under Power-Off Conditions
Over-voltage tolerant
Latch-up performance exceeds 100mA
VCC = 2.3V - 3.6V, Normal Range
ESD > 2000V per MIL-STD-883, Method 3015;
> 200V using machine model (C = 200pF, R = 0)
Available in SSOP, QSOP, and TSSOP packages

IDT74CBTLV3245 Typical Application

3.3V High Speed Bus Switching and Bus Isolation

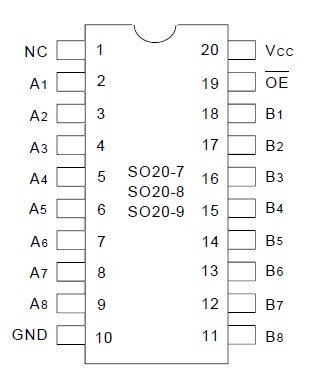

IDT74CBTLV3245 Connection Diagram

IDT74CBTLV3245 Connection Diagram
