General Description
IDT74CBTLV3862 General Description
The CBTLV3862 provides ten bits of high-speed bus switching with low on-state resistance of the switch allowing connections to be made with minimal propagation delay.
The device is organized as one 10-bit bus switch. The switches are controlled by independent active-low enable (OE) and active-high enable (OE) controls.
To ensure the high-impedance state during power up or power down, OEshould be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver, and OE should be tied to GND.
IDT74CBTLV3862 Maximum Ratings
|
Symbol |
Description |
Max |
Unit |
|
VCC |
Supply Voltage Range |
0.5 to 4.6 |
V |
|
VI |
Input Voltage Range |
0.5 to 4.6 |
V |
|
|
Continuous Channel Current |
128 |
mA |
|
IIK |
Input Clamp Current, VI/O < 0 |
-50 |
mA |
|
TSTG |
Storage Temperature Range |
65 to +150 |
°C |
NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
IDT74CBTLV3862 Features
• 5 A/B bi-directional switch
• Isolation Under Power-Off Conditions
• Over-voltage tolerant
• Latch-up performance exceeds 100mA
• VCC = 2.3V - 3.6V, normal range
• ESD >2000V per MIL-STD-883, Method 3015; >200V using machine model (C = 200pF, R = 0)
• Available in SSOP, QSOP, and TSSOP packages
• Isolation Under Power-Off Conditions
• Over-voltage tolerant
• Latch-up performance exceeds 100mA
• VCC = 2.3V - 3.6V, normal range
• ESD >2000V per MIL-STD-883, Method 3015; >200V using machine model (C = 200pF, R = 0)
• Available in SSOP, QSOP, and TSSOP packages
IDT74CBTLV3862 Typical Application
• 3.3V High Speed Bus Switching and Bus Isolation

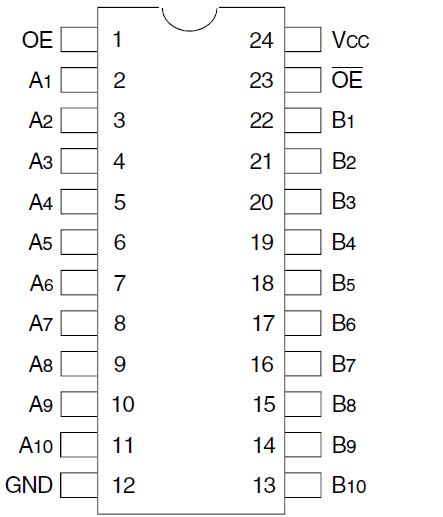

IDT74CBTLV3862 Connection Diagram
IDT74CBTLV3862
