IDT74FCT162827CT
-
Suppliers
DataSheet
General Description
IDT74FCT162827CT General Description
The FCT162827T 20-bit buffers are built using advanced dual metal CMOS technology. These 20-bit bus drivers provide high-performance bus interface buffering for wide data/address paths or buses carrying parity. Two pair of NAND-ed output enable controls offer maximum control flexibility and are organized to operate the device as two 10-bit buffers or one 20-bit buffer. Flowthrough organization of signal pins simplifies layout. All inputs are designed with hysteresis for improved noise margin.
The FCT162827T has balanced output drive with current limiting resistors. This offers low ground bounce, minimal undershoot, and controlled output fall timesreducing the need for external series terminating resistors. The FCT162827T is a plug-in replacement for the FCT16827T and ABT16827 for on-board interface applications.
IDT74FCT162827CT Maximum Ratings
|
Symbol |
Description |
Max |
Unit |
|
VTERM(2) |
Terminal Voltage with Respect to GND |
0.5 to +7 |
V |
|
VTERM(3) |
Terminal Voltage with Respect to GND |
0.5 to VCC+0.5 |
V |
|
TSTG |
Storage Temperature |
65 to +150 |
°C |
|
IOUT |
DC Output Current |
60 to +120 |
mA |
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. All device terminals except FCT162XXX Output and I/O terminals.
3. Output and I/O terminals for FCT162XXX.
IDT74FCT162827CT Features
• 0.5 MICRON CMOS Technology
• High-speed, low-power CMOS replacement for ABT functions
• Typical tSK(o) (Output Skew) < 250ps
• Low input and output leakage 1A (max.)
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 5V ±10%
• Balanced Output Drivers (±24mA)
• Reduced system switching noise
• Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V, TA = 25°C
• Available in SSOP and TSSOP packages
• High-speed, low-power CMOS replacement for ABT functions
• Typical tSK(o) (Output Skew) < 250ps
• Low input and output leakage 1A (max.)
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 5V ±10%
• Balanced Output Drivers (±24mA)
• Reduced system switching noise
• Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V, TA = 25°C
• Available in SSOP and TSSOP packages

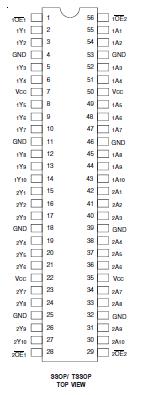

IDT74FCT162827CT Connection Diagram
