Part Number: IDT74FCT163245A
Description: The FCT163245/A/C 16-bit transceivers are built using advanced dual metal CMOS technology. These high-...
- Table of contents:
IDT74FCT163245A
-
Suppliers
DataSheet
General Description
IDT74FCT163245A General Description
The FCT163245/A/C 16-bit transceivers are built using advanced dual metal CMOS technology. These high-speed, low-power transceivers are ideal for synchronous communication between two busses (A and B). The Direction and Output Enable controls are designed to operate these devices as either two independent 8-bit transceivers or one 16-bit transceiver. The direction control pin (xDIR) controls the direction of data flow. The output enable pin (xOE) overrides the direction control and disables both ports. All inputs are designed with hysteresis for improved noise margin.
IDT74FCT163245A Maximum Ratings
|
Symbol |
Description |
Max. |
Unit |
|
VTERM(2) |
Terminal Voltage with Respect to GND |
0.5 to +4.6 |
V |
|
VTERM(3) |
Terminal Voltage with Respect to GND |
0.5 to +7.0 |
V |
|
VTERM(4) |
Terminal Voltage with Respect to GND |
0.5 to VCC + 0.5 |
V |
|
TSTG |
Storage Temperature |
65 to +150 |
mA |
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause
permanent damage to the device. This is a stress rating only and functional operation
of the device at these or any other conditions above those indicated in the operational
sections of this specification is not implied. Exposure to absolute maximum rating conditions
for extended periods may affect reliability.
2. Vcc terminals.
3. Input terminals.
4. Output and I/O terminals.
IDT74FCT163245A Features
• 0.5 MICRON CMOS Technology
• Typical tSK(o) (Output Skew) < 250ps
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP and 15.7 mil pitch TVSOP
• Extended commercial range of -40°C to +85°C
• VCC = 3.3V ±0.3V, Normal Range or VCC = 2.7 to 3.6V, Extended Range
• CMOS power levels (0.4mW typ. static)
• Rail-to-Rail output swing for increased noise margin
• Low Ground Bounce (0.3V typ.)
• Inputs (except I/O) can be driven by 3.3V or 5V components

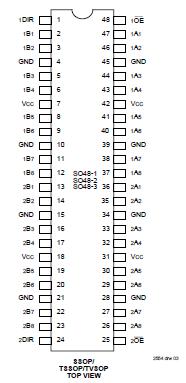

IDT74FCT163245A Connection Diagram
