IDT74FCT163344/A/C

Features: 0.5 MICRON CMOS TechnologyTypical tsk(o) (Output Skew) < 250psESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)VCC= 3.3V ± 0.3V, Normal Range or VCC= 2.7V to 3.6V, Extended RangeCMOS power levels (0.4W typ. static)Rail-to-Rail output swing f...

product image

IDT74FCT163344/A/C Picture
See larger image
SeekIC No. : 004372919 Detail

IDT74FCT163344/A/C: Features: 0.5 MICRON CMOS TechnologyTypical tsk(o) (Output Skew) < 250psESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)VCC= 3.3V ± 0.3V, Normal Range...

IDT74FCT163344/A/C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT74FCT163344/A/C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

0.5 MICRON CMOS Technology
Typical tsk(o) (Output Skew) < 250ps
ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
VCC = 3.3V ± 0.3V, Normal Range or   VCC= 2.7V to 3.6V, Extended Range
CMOS power levels (0.4W typ. static)
Rail-to-Rail output swing for increased noise margin
Low Ground Bounce (0.3V typ.)
Inputs (except I/O) can be driven by 3.3V or 5V components
Available in SSOP, TSSOP and TVSOP Packages


Pinout

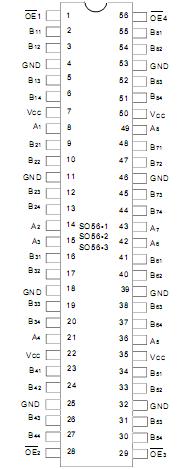

Connection Diagram


Specifications

Symbol

Description

Max

Unit

VTERM(2) Terminal Voltage with Respect to GND 0.5 to +4.6 V
VTERM(3) Terminal Voltage with Respect to GND 0.5 to +7 V
VTERM(4) Terminal Voltage with Respect to GND 0.5 to VCC+0.5 V
TSTG Storage Temperature 65 to +150
IOUT DC Output Current 60 to +60 mA



Description

      The IDT74FCT163344/A/C is a 1:4 address/clock driver built using advanced dual metal CMOS technology.  This high-speed, low power device provides the ability to fanout to memory arrays.  Eight banks, each with a fanout of 4, and 3-state control provide efficient address distribution.  One or more banks may be used for clock distribution.

      The IDT74FCT163344/A/C have series current limiting resistors.  These offer low ground bounce, minimal undershoot and controlled output fall times, reducing the need for external series terminating resistors.

      A large number of power and ground pins ensure reduced noise levels. All inputs are designed with hysteresis for improved noise margins.

      The inputs of the IDT74FCT163344/A/C can be driven from either 3.3V or 5V device.  This feature allows the use of these devices as translators in a mixed 3.3V/5V supply system.
