IDT74FCT163373
-
Suppliers
DataSheet
General Description
IDT74FCT163373 General Description
The FCT163373/A/C 16-bit transparent D-type latches are built using advanced dual metal CMOS technology. These high-speed, low-power latches are ideal for temporary storage of data. They can be used for implementing memory address latches, I/O ports, and bus drivers. The Output Enable and Latch Enable controls are organized to operate each device as two 8-bit latches or one 16-bit latch. Flowthrough organization of signal pins simplifies layout. All inputs are designed with hysteresis for improved noise margin.
The inputs of FCT163373/A/C can be driven from either 3.3V or 5V devices. This feature allows the use of these transparent latches as translators in a mixed 3.3V/5V supply system. With xLE inputs HIGH, the FCT163373/A/C can beused as buffers to connect 5V components to a 3.3V bus.
IDT74FCT163373 Maximum Ratings
| Symbol | Description | Max. | Unit |
| VTER(2) | Terminal Voltage with Respect to GND |
0.5 to +4.6 | V |
| VTER(3) | Terminal Voltage with Respect to GND |
0.5 to +7.0 | V |
| VTER(4) | Terminal Voltage with Respect to GND |
0.5 to VCC + 0.5 |
V |
| TSTG | Storage Temperature | 65 to +150 | |
| IOUT | DC Output Current | 60 to +60 | mA |
IDT74FCT163373 Features
•0.5 MICRON CMOS Technology
•Typical tSK(o) (Output Skew) < 250ps
•ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
•Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP and 15.7 mil pitch TVSOP
•Extended commercial range of -40 to +85
•VCC = 3.3V ±0.3V, Normal Range or VCC = 2.7 to 3.6V, Extended Range
•CMOS power levels (0.4mW typ. static)
•Rail-to-Rail output swing for increased noise margin
•Low Ground Bounce (0.3V typ.)
•Inputs (except I/O) can be driven by 3.3V or 5V components

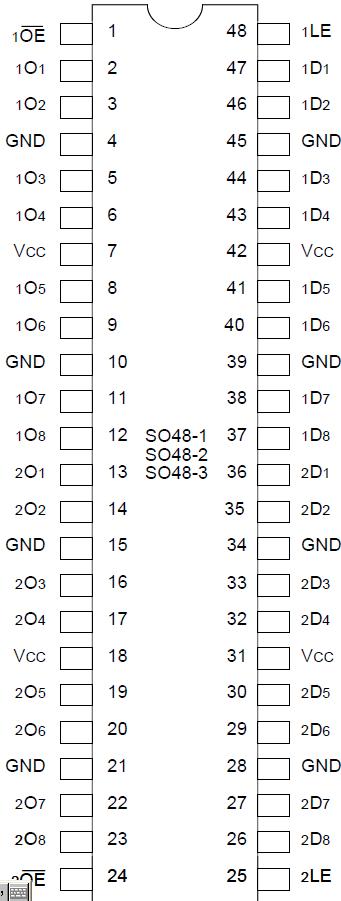

IDT74FCT163373 Connection Diagram
IDT74FCT163373A
