IDT74FCT16952AT
-
Suppliers
DataSheet
General Description
IDT74FCT16952AT General Description
The FCT16952T 16-bit registered transceiver is built using advanced dual metal CMOS technology. These high-speed, low-power devices are organized as two independent 8-bit D-type registered transceivers with separate input and output control for independent control of data flow in either direction. For example, the A-to-B Enable (xCEAB) must be low to enter data from the A port. xCLKAB controls the clocking function. When xCLKAB toggles from low-to-high, the data present on the A port will be clocked into the register. xOEAB performs the output enable function on the B port. Data flow from the B port to A port is similar but requires using xCEBA, xCLKBA, and xOEBA inputs. Full 16-bit operation is achieved by tying the control pins of the independent transceivers together.
The FCT16952T is ideally suited for driving high-capacitance loads and low-impedance backplanes. The output buffers are designed with power off disable capability allowing "live insertion" of boards when used as backplane drivers.
IDT74FCT16952AT Maximum Ratings
|
Symbol |
Description |
Max |
Unit |
|
VTERM(2) |
Terminal Voltage with Respect to GND |
0.5 to +7 |
V |
|
VTERM(3) |
Terminal Voltage with Respect to GND |
0.5 to VCC+0.5 |
V |
|
TSTG |
Storage Temperature |
65 to +150 |
°C |
|
IOUT |
DC Output Current |
60 to +120 |
mA |
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. All device terminals except FCT162XXX Output and I/O terminals.
3. Output and I/O terminals for FCT162XXX.
IDT74FCT16952AT Features
• 0.5 MICRON CMOS Technology
• High-speed, low-power CMOS replacement for ABT functions
• Typical tSK(o) (Output Skew) < 250ps
• Low input and output leakage 1A (max.)
• High drive outputs (-32mA IOH, 64mA IOL)
• Power off disable outputs permit "live insertion"
• Typical VOLP (Output Ground Bounce) < 1.0V at VCC = 5V, TA = 25°C
• Available in SSOP and TSSOP packages
• High-speed, low-power CMOS replacement for ABT functions
• Typical tSK(o) (Output Skew) < 250ps
• Low input and output leakage 1A (max.)
• High drive outputs (-32mA IOH, 64mA IOL)
• Power off disable outputs permit "live insertion"
• Typical VOLP (Output Ground Bounce) < 1.0V at VCC = 5V, TA = 25°C
• Available in SSOP and TSSOP packages

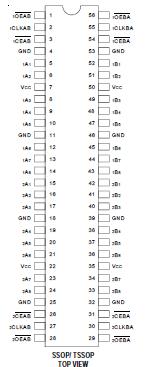

IDT74FCT16952AT Connection Diagram
IDT74FCT16952AT
PDF/DataSheet Download
- Datasheet: IDT74FCT16952AT
- File Size: 68038 KB
- Manufacturer: IDT
- Click here to Download
