Features:

• IDT74FCT299A 25% faster than FAST
• Equivalent to FAST output drive over full temperature and voltage supply extremes
• IOL = 48mA
• CMOS power levels (1mW typ. static)
• TTL input and output level compatible
• CMOS output level compatible
• Substantially lower input current levels than FAST (5A max.)
• 8-input universal shift register
• Available in SOIC package


Pinout

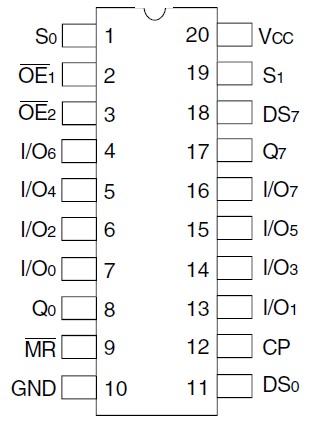

Connection Diagram


Specifications

Symbol
Description
Max
Unit
VTERM(2)
Terminal Voltage with Respect to GND
0.5 to +7
V
VTERM(3)
Terminal Voltage with Respect to GND
0.5 to +VCC
V
TA
Operating Temperature
0 to +70
°C
TBIAS
Temperature under BIAS
55 to +125
°C
TSTG
Storage Temperature
55 to +125
°C
PT
Power Dissipation
0.5
W

IOUT
DC Output Current
120
mA

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability. No terminal voltage may exceed Vcc by +0.5V unless otherwise noted.
2. Input and Vcc terminals only.
3. Output and I/O terminals only.




Description

The IDT74FCT299A is built using an advanced dual metal CMOS technology. The IDT74FCT299A is an 8-input universal shift/storage register with 3-state outputs. Four modes of operation are possible: hold (store), shift left, shift right and load data. The parallel load inputs and flipflop outputs are multiplexed to reduce the total number of package pins. Additional outputs are provided for flip-flops Q0 and Q7 to allow easy serial cascading. A separate active low Master Reset is used to reset the register.
