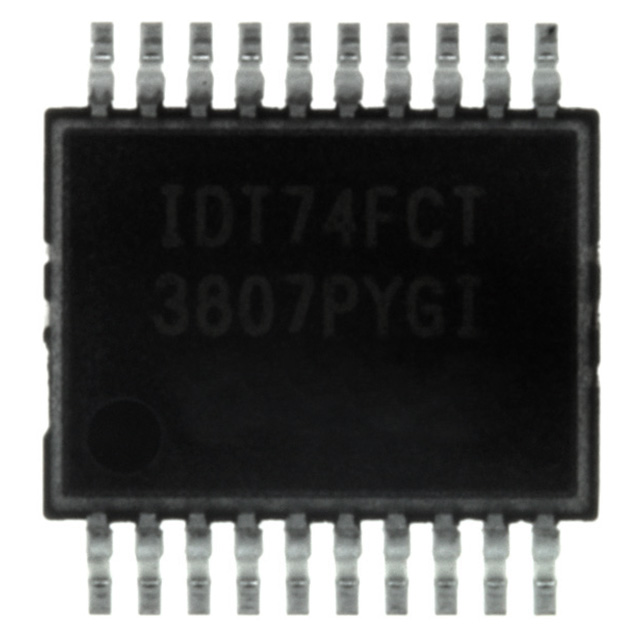

Type: Fanout Buffer (Distribution)
Number of Circuits: 1
Differential - Input:Output: No/No
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Input: LVTTL
Ratio - Input:Output: 1:10
Packaging: Tube
Frequency - Max: 100MHz
Voltage - Supply: 3 V ~ 3.6 V
Package / Case: 20-SSOP (0.209", 5.30mm Width)
Supplier Device Package: 20-SSOP
Manufacturer: IDT, Integrated Device Technology Inc
Series: 74FCT
Output: CMOS, TTL
Features: ·0.5 MICRON CMOS Technology
·Guaranteed low skew < 350ps (max.)
·Very low duty cycle distortion < 350ps (max.)
·High speed: propagation delay < 3ns (max.)
·Very low CMOS power levels
·TTL compatible inputs and outputs
·1:10 fanout
·Maximum output rise and fall time < 1.5ns (max.)
·Low input capacitance: 4.5pF typical
·VCC = 3.3V ± 0.3
·Inputs can be driven from 3.3V or 5V components

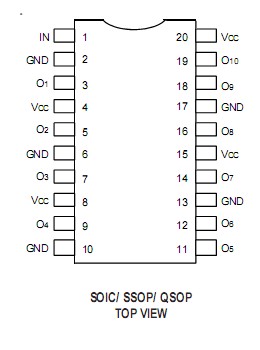

·Available in SSOP, SOIC, and QSOP packagesPinout
Specifications
| Symbol |
Rating |
Max. |
Unit |
| VTERM(2) |
Terminal Voltagewith Respect to GND |
-0.5 to +4.6 |
V |
| VTERM(3) |
Terminal Voltagewith Respect to GND |
-0.5 to +7 |
V |
| VTERM(4) |
Terminal Voltagewith Respect toGND |
-0.5 to VCC + 0.5 |
V |
| TSTG |
Storage Temperature |
-65 to +150 |
|
| IOUT |
DC Output Current |
-60 to +60 |
mA |
NOTES:
1.Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2.VCC terminals.
3.Input terminals.
4.Outputs and I/O terminals.
DescriptionThe IDT74FCT3807PYI 3.3V clock driver is built using advanced dual metal CMOS echnology. This low skew clock driver offers 1:10 fanout. The large fanout from a single input reduces loading on the preceding driver and provides an efficient clock distribution network. The IDT74FCT3807PYI offers low capacitance inputs with hysteresis for improved noise margins. Multiple power and grounds reduce noise. Typical applications are clock and signal distribution.
Parameters: | Technical/Catalog Information | IDT74FCT3807PYI |
| Vendor | IDT, Integrated Device Technology Inc |
| Category | Integrated Circuits (ICs) |
| Type | Clock Driver |
| Voltage - Supply | 3 V ~ 3.6 V |
| Number of Outputs | 10 |
| Input | LVTTL |
| Output | CMOS |
| Frequency-Max | 100MHz |
| Package / Case | 20-SSOP |
| Packaging | Tube |
| Operating Temperature | -40°C ~ 85°C |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | IDT74FCT3807PYI
IDT74FCT3807PYI
|
