Part Number: IDT74FCT807CT



MFG: Original and new, Special price!

Package Cooled: Original and new, Special price!

D/C: 05+

Description: The FCT807T clock driver is built using advanced dual metal CMOS technology. This low skew clock drive...


Urgent Purchase

IDT74FCT807CT General Description


The FCT807T clock driver is built using advanced dual metal CMOS technology. This low skew clock driver features 1:10 fanout, providing minimal loading on the preceding drivers. The FCT807T offers low capacitance inputs with hysteresis for improved noise margins. TTL level outputs and multiple power and grounds reduce noise. The device also features -32/48mA drive capability for driving low impedance traces.

IDT74FCT807CT Maximum Ratings

Symbol
Description
Max
Unit
VTER(2)
Terminal Voltage with Respect to GND
0.5 to +7
v
TSTG
Storage Temperature
65 to +165
°C
IOUT
Junction Temperature
60 to +60
mA

NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause
permanent damage to the device. This is a stress rating only and functional operation
of the device at these or any other conditions above those indicated in the operational
sections of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect reliability.

IDT74FCT807CT Features

• 0.5 MICRON CMOS Technology
• Guaranteed low skew < 250ps (max.)
• Very low duty cycle distortion < 350ps (max.)
• High speed: propagation delay < 2.5ns (max.)
• 100MHz operation
• TTL compatible inputs and outputs
• TTL level output voltage swings
• 1:10 fanout
• Output rise and fall time < 1.5ns (max)
• Low input capacitance: 4.5pF typical
• High drive: -32mA IOH, +48mA IOL
• Available in QSOP, SSOP, and SOIC packages

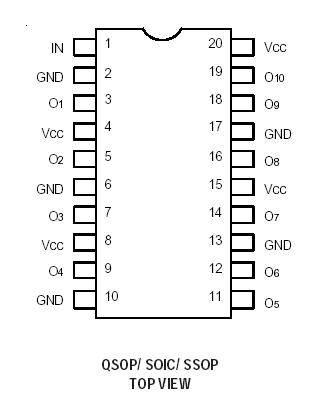

IDT74FCT807CT Connection Diagram

IDT74FCT807CT Connection Diagram
