Part Number: IDT74FCT863B
Description: The IDT74FCT800 series is built using an advanced dual metal CMOS technology. The IDT74FCT863 9-bit tr...
- Table of contents:
IDT74FCT863B
-
Suppliers
DataSheet
General Description
IDT74FCT863B General Description
The IDT74FCT800 series is built using an advanced dual metal CMOS technology. The IDT74FCT863 9-bit transceivers have NAND-ed output enables for maximum control flexibility.
All of the IDT74FCT800 high-performance interface family is designed for high-capacitance load drive capability while providing low-capacitance bus loading at both inputs and outputs. All inputs have clamp diodes and all outputs are designed for low-capacitance bus loading in the highimpedance state.
IDT74FCT863B Maximum Ratings
|
Symbol |
Description |
Max |
Unit |
|
VTERM(2) |
Terminal Voltage with Respect to GND |
0.5 to +7 |
V |
|
VTERM(3) |
Terminal Voltage with Respect to GND |
0.5 to +VCC |
V |
|
TA |
Operating Temperature |
0 to +70 |
°C |
|
TBIAS |
Temperature under BIAS |
55 to +125 |
°C |
|
TSTG |
Storage Temperature |
55 to +125 |
°C |
|
PT |
Power Dissipation |
0.5 |
W |
|
IOUT |
DC Output Current |
120 |
mA |
NOTES: 1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability. No terminal voltage may exceed Vcc by +0.5V unless otherwise noted.
2. Input and Vcc terminals only.
3. Output and I/O terminals only.
IDT74FCT863B Features
• Equivalent to AMD's Am29861-64 bipolar registers in pinout/ function, speed, and output drive over full temperature
and voltage supply extremes
• IDT74FCT863A equivalent to FAST™ speed
• IDT74FCT863B 25% faster than FAST
• High-speed symmetrical bidirectional transceivers
• IOL = 48mA
• Clamp diodes on all inputs for ringing suppression
• CMOS power levels (1mW typ. static)
• TTL input and output level compatible
• CMOS output level compatible
• Substantially lower input current levels than AMD's bilopar Am29800 series (5A max.)
• Available in SOIC package
and voltage supply extremes
• IDT74FCT863A equivalent to FAST™ speed
• IDT74FCT863B 25% faster than FAST
• High-speed symmetrical bidirectional transceivers
• IOL = 48mA
• Clamp diodes on all inputs for ringing suppression
• CMOS power levels (1mW typ. static)
• TTL input and output level compatible
• CMOS output level compatible
• Substantially lower input current levels than AMD's bilopar Am29800 series (5A max.)
• Available in SOIC package

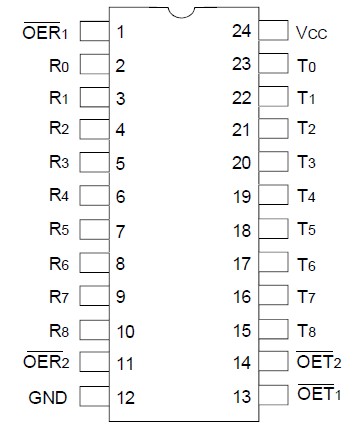

IDT74FCT863B Connection Diagram
IDT74FCT863B
PDF/DataSheet Download
- Datasheet: IDT74FCT863B
- File Size: 67518 KB
- Manufacturer: IDT
- Click here to Download
