Features: • 0.5 MICRON CMOS Technology• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)• VCC = 3.3V ± 0.3V, Normal Range• VCC = 2.7V to 3.6V, Extended Range• CMOS power levels (0.4µ W typ. static)• Rail-to-Rail...
IDT74LVC125A: Features: • 0.5 MICRON CMOS Technology• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)• VCC = 3.3V ± 0.3V, Normal Range• VCC = ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Description | Max | Unit |
VTERM | Terminal Voltage with Respect to GND | 0.5 to +6.5 | V |
TSTG | Storage Temperature | 65 to +150 | |
IOUT | DC Output Current | 50 to +50 | mA |
IIK IOK |
Continuous Clamp Current, VI < 0 or VO < 0 |
50 | mA |
ICC ISS |
Continuous Current through each VCC or GND |
±100 | mA |

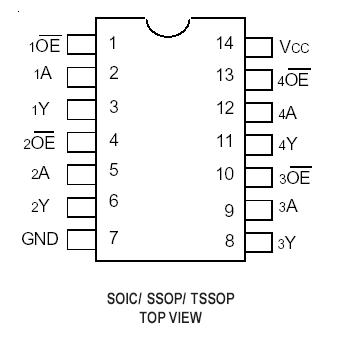

The LVC125A quadruple bus buffer gate is built using advanced dual metal CMOS technology. The LVC125A features independent line drivers with 3-state outputs. Each output is disabled when the associated outputenable (OE) input is high.
To ensure the high impedance state during power up or power down, OE IDT74LVC125A should be tied to Vcc through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of IDT74LVC125A as a translator in a mixed 3.3V/5V system environment.
The LVC125A has been designed with a ±24mA output driver. This driver is capable of driving a moderate to heavy load while maintaining speed performance.
