Part Number: IDT74LVC162374A
Description: The LVC162374A 16-bit edge-triggered D-type flip-flop is built using advanced dual metal CMOS technolo...
- Table of contents:
IDT74LVC162374A
-
Suppliers
DataSheet
General Description
IDT74LVC162374A General Description
The LVC162374A 16-bit edge-triggered D-type flip-flop is built using advanced dual metal CMOS technology. This high-speed, low-power register is ideal for use as a buffer register for data synchronization and storage. The output enable (OE) and clock (CLK) controls are organized to operate each device as two 8-bit registers or one 16-bit register with common clock. Flow-through organization of signal pins simplifies layout.
All inputs are designed with hysteresis for improved noise margin. All pins of the LVC162374A can be driven from either 3.3V or 5V devices.This feature allows the use of this device as a translator in a mixed 3.3V/ 5V supply system.
The LVC162374A has series resistors in the device output structure which will significantly reduce line noise when used with light loads. This driver has been developed to drive ±12mA at the designated thresholds
IDT74LVC162374A Maximum Ratings
|
Symbol |
Description |
Max |
Unit |
|
VTERM(2) |
Terminal Voltage with Respect to GND |
0.5 to +6.5 |
V |
|
VTERM(3) |
Terminal Voltage with Respect to GND |
0.5 to +6.5 |
V |
|
TSTG |
Storage Temperature |
65 to +150 |
°C |
|
IOUT |
DC Output Current |
50 to +50 |
mA |
|
IIK IOK |
Continuous Clamp Current, VI < 0 or VO < 0 |
50 |
mA |
|
ICC ISS |
Continuous Current through each VCC or GND |
±100 |
mA |
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. VCC terminals.
3. All terminals except VCC.
IDT74LVC162374A Features
• Typical tSK(o) (Output Skew) < 250ps
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 3.3V ± 0.3V, Normal Range
• VCC = 2.7V to 3.6V, Extended Range
• CMOS power levels (0.4 W typ. static)
• All inputs, outputs, and I/O are 5V tolerant
• Available in SSOP, TSSOP, and TVSOP packages
• Balanced Output Drivers: ±12mA
• Low switching noise
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 3.3V ± 0.3V, Normal Range
• VCC = 2.7V to 3.6V, Extended Range
• CMOS power levels (0.4 W typ. static)
• All inputs, outputs, and I/O are 5V tolerant
• Available in SSOP, TSSOP, and TVSOP packages
• Balanced Output Drivers: ±12mA
• Low switching noise
IDT74LVC162374A Typical Application
• 5V and 3.3V mixed voltage systems
• Data communication and telecommunication systems
• Data communication and telecommunication systems

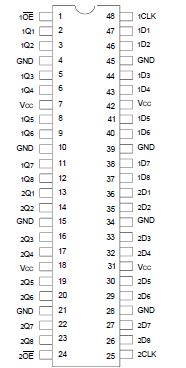

IDT74LVC162374A Connection Diagram
IDT74LVC162374A
