Part Number: IDT74LVCC4245A
Description: The LVCC4245A is manufactured using advanced dual metal CMOS technology. This 8-bit (octal) noninverti...
- Table of contents:
IDT74LVCC4245A
-
Suppliers
DataSheet
General Description
IDT74LVCC4245A General Description
The LVCC4245A is manufactured using advanced dual metal CMOS technology. This 8-bit (octal) noninverting bus transceiver contains two separate power-supply rails. The configurable B port is designed to track VCCB, which accepts voltages from 3V to 5V, and the A port is dedicated to accept a 5V supply level. This allows for translation from a 3.3V to a 5V system environment and vice-versa.
This LVCC4245A is ideal for asynchronous communication between two data buses (A and B). The device transmits data from A to B or from B to A, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so the buses are effectively isolated.
The LVCC4245A has been designed with a ±24mA output driver. This driver is capable of driving a moderate to heavy load while maintaining speed performance.
IDT74LVCC4245A Maximum Ratings
|
Symbol |
Description |
Max |
Unit |
|
VTERM |
Terminal Voltage with Respect to GND |
0.5 to +4.6 |
V |
|
TSTG |
Storage Temperature |
65 to +150 |
|
|
IOUT |
DC Output Current |
50 to +50 |
mA |
|
IIK IOK |
Continuous Clamp Current, VI < 0 or VO < 0 |
-50 |
mA |
|
ICC ISS |
Continuous Current through each VCC or GND |
±100 |
mA |
IDT74LVCC4245A Features
• 0.5 MICRON CMOS Technology
• VCCA = 5V ± 0.5V
• VCCB = 2.7V to 5.5V
• CMOS power levels (0.4µ W typ. static)
• Rail-to-rail output swing for increased noise margin
• All inputs, outputs, and I/O are 5V tolerant
• Supports hot insertion
• Available in SSOP, QSOP, and TSSOP packages
• VCCA = 5V ± 0.5V
• VCCB = 2.7V to 5.5V
• CMOS power levels (0.4µ W typ. static)
• Rail-to-rail output swing for increased noise margin
• All inputs, outputs, and I/O are 5V tolerant
• Supports hot insertion
• Available in SSOP, QSOP, and TSSOP packages
IDT74LVCC4245A Typical Application
• 5V and 3.3V mixed voltage systems
• Data communication and telecommunication systems
• Data communication and telecommunication systems

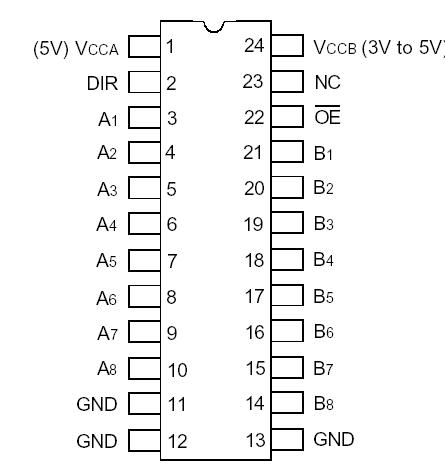

IDT74LVCC4245A Connection Diagram
IDT74LVCC4245A
