Part Number: IDT74LVCH16245A
Description: This 16-bit bus transceiver is built using advanced dual metal CMOS technology. This high-speed, low p...
- Table of contents:
IDT74LVCH16245A
-
Suppliers
DataSheet
General Description
IDT74LVCH16245A General Description
This 16-bit bus transceiver is built using advanced dual metal CMOS technology. This high-speed, low power transceiver is ideal for asynchronous communication between two busses (A and B). The Direction and Output Enable controls are designed to operate this device as either two independent 8-bit transceivers or one 16-bit transceiver. The direction control pin (DIR) controls the direction of data flow. The output enable pin (OE) overrides the direction control and disables both ports. All inputs are designed with hysteresis for improved noise margin.
All pins can be driven from either 3.3V or 5V devices. This feature allows the use of this device as a translator in a mixed 3.3V/5V supply system. The LVCH16245A has been designed with a ±24mA output driver. This driver is capable of driving a moderate to heavy load while maintaining speed performance.
The LVCH16245A has "bus-hold" which retains the inputs' last state whenever the input goes to a high impedance. This prevents floating inputs and eliminates the need for pull-up/down resistors.
IDT74LVCH16245A Maximum Ratings
|
Symbol |
Description |
Max |
Unit |
|
VTERM |
Terminal Voltage with Respect to GND |
0.5 to +6.5 |
V |
|
VTERM |
Terminal Voltage with Respect to GND |
0.5 to +6.5 |
V |
|
TSTG |
Storage Temperature |
65 to +150 |
°C |
|
IOUT |
DC Output Current |
50 to +50 |
mA |
|
IIK IOK |
Continuous Clamp Current, VI < 0 or VO < 0 |
50 |
mA |
|
ICC ISS |
Continuous Current through each VCC or GND |
±100 |
mA |
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent
damage to the device. This is a stress rating only and functional operation of the device at these
or any other conditions above those indicated in the operational sections of this specification is
not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
IDT74LVCH16245A Features
• Typical tSK(o) (Output Skew) < 250ps
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 3.3V ± 0.3V, Normal Range
• VCC = 2.7V to 3.6V, Extended Range
• CMOS power levels (0.4 W typ. static)
• All inputs, outputs, and I/O are 5V tolerant
• Available in SSOP, TSSOP, and TVSOP packages
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 3.3V ± 0.3V, Normal Range
• VCC = 2.7V to 3.6V, Extended Range
• CMOS power levels (0.4 W typ. static)
• All inputs, outputs, and I/O are 5V tolerant
• Available in SSOP, TSSOP, and TVSOP packages
IDT74LVCH16245A Typical Application
• 5V and 3.3V mixed voltage systems
• Data communication and telecommunication systems
• Data communication and telecommunication systems

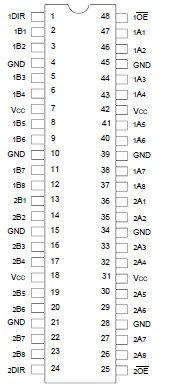

IDT74LVCH16245A Connection Diagram
IDT74LVCH16245A
