Part Number: IDT77V107
Description: The IDT77V107 is a member of IDT's family of products supporting Asynchronous Transfer Mode (ATM) data...
- Table of contents:
IDT77V107
-
Suppliers
DataSheet
General Description
IDT77V107 General Description
The IDT77V107 is a member of IDT's family of products supporting Asynchronous Transfer Mode (ATM) data communications and networking. The IDT77V107 implements the physical layer for 25.6 Mbps ATM, connecting a serial copper link (UTP Category 3) to an ATM layer device such as a SAR or a switch ASIC. The IDT77V107 also operates at 51.2 Mbps and is well suited to backplane driving applications. The 77V107 has an 8-bit UTOPIA Level 2 interface on the cell side.
The IDT77V107 is fabricated using IDT's state-of-the-art CMOS technology, providing the highest levels of integration, performance and reliability, with the low-power consumption characteristics of CMOS.
IDT77V107 Maximum Ratings
| Symbol | Description | Max | Unit |
| VTERM | Terminal Voltage with Respect to GND | -0.5 to +5.5 | V |
| TBIAS | Temperature Under Bias | -55 to +125 | °C |
| TSTG | Storage Temperature | -55 to +120 | °C |
| IOUT | DC Output Current | 50 | mA |
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
IDT77V107 Features
· Performs the PHY-Transmission Convergence (TC) and Physical Media Dependent (PMD) Sublayer functions of the Physical Layer
· Compliant to ATM Forum (af-phy-040.000) and ITU-T I.432.5 specifications for 25.6 Mbps physical interface
· Also operates at 51.2Mbps
· 8-bit Utopia Level 2 Interface
· 3-Cell Transmit & Receive FIFOs
· Receiver Auto-Synchronization and Good Signal Indication
· Supports UTP Category 3 physical media
· Interfaces to standard magnetics
· Low-Power CMOS
· 3.3V supply with 5V tolerant inputs
· 100-lead TQFP Package (14 x 14 mm)
· Commercial and Industrial temperature ranges
· Compliant to ATM Forum (af-phy-040.000) and ITU-T I.432.5 specifications for 25.6 Mbps physical interface
· Also operates at 51.2Mbps
· 8-bit Utopia Level 2 Interface
· 3-Cell Transmit & Receive FIFOs
· Receiver Auto-Synchronization and Good Signal Indication
· Supports UTP Category 3 physical media
· Interfaces to standard magnetics
· Low-Power CMOS
· 3.3V supply with 5V tolerant inputs
· 100-lead TQFP Package (14 x 14 mm)
· Commercial and Industrial temperature ranges

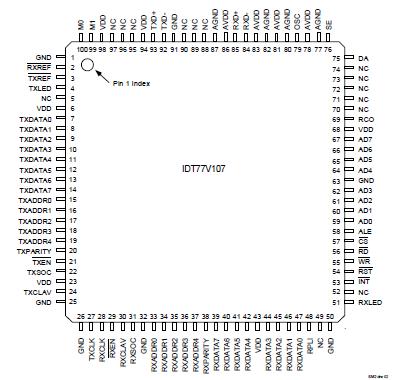

IDT77V107 Connection Diagram
IDT77V107
PDF/DataSheet Download
- Datasheet: IDT77V107
- File Size: 333458 KB
- Manufacturer: IDT [Integrated Device Technology]
- Click here to Download
