General Description
IDT77V1253 General Description
The IDT77V1253 is a member of IDT's family of products supporting Asynchronous Transfer Mode (ATM) data communications and networking. The IDT77V1253 implements the physical layer for 25.6 Mbps ATM, connecting three serial copper links (UTP Category 3) to one ATM layer device such as a SAR or a switch ASIC. The IDT77V1253 also operates at 51.2 Mbps, and is well suited to backplane driving applications. The 77V1253-to-ATM layer interface is selectable as one of three options: 16-bit UTOPIA Level 2, 8-bit UTOPIA Level 1 Multi-PHY, or triple 4-bit DPI (Data Path Interface).
The IDT77V1253 is fabricated using IDT's state-of-the-art CMOS technology, providing the highest levels of integration, performance and reliability, with the low-power consumption characteristics of CMOS.
IDT77V1253 Maximum Ratings
| Symbol | Rating | Value | Unit |
| VTERM | Terminal Voltage with respect to GND |
0.5 to +5.5 | V |
| TBIAS | Temperature Under Bias |
55 to +125 | °C |
| TSTG | Storage Temperature |
55 to +125 | °C |
| IOUT | DC Output Current | 50 | mA |
NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS
may cause permanent damage to the device. This is a stress rating
only and functional operation of the device at these or any other conditions
above those indicated in the operational sections of this specification is not
implied. Exposure to absolute maximum rating conditions for extended
periods may affect reliabilty.
IDT77V1253 Features
• Performs the PHY-Transmission Convergence (TC) and
Physical Media Dependent (PMD) Sublayer functions for
three 25.6 Mbps ATM channels
• Compliant to ATM Forum (af-phy-040.000) and ITU-T
I.432.5 specifications for 25.6 Mbps physical interface
• Also operates at 51.2Mbps
• UTOPIA Level 1, UTOPIA Level 2, or DPI-4 Interface
• 3-Cell Transmit & Receive FIFOs
• LED Interface for status signalling
• Supports UTP Category 3 physical media
• Interfaces to standard magnetics
• Low-Power CMOS
• 3.3V supply with 5V tolerant inputs
• 144-pin PQFP Package (28 x 28 mm)
Physical Media Dependent (PMD) Sublayer functions for
three 25.6 Mbps ATM channels
• Compliant to ATM Forum (af-phy-040.000) and ITU-T
I.432.5 specifications for 25.6 Mbps physical interface
• Also operates at 51.2Mbps
• UTOPIA Level 1, UTOPIA Level 2, or DPI-4 Interface
• 3-Cell Transmit & Receive FIFOs
• LED Interface for status signalling
• Supports UTP Category 3 physical media
• Interfaces to standard magnetics
• Low-Power CMOS
• 3.3V supply with 5V tolerant inputs
• 144-pin PQFP Package (28 x 28 mm)

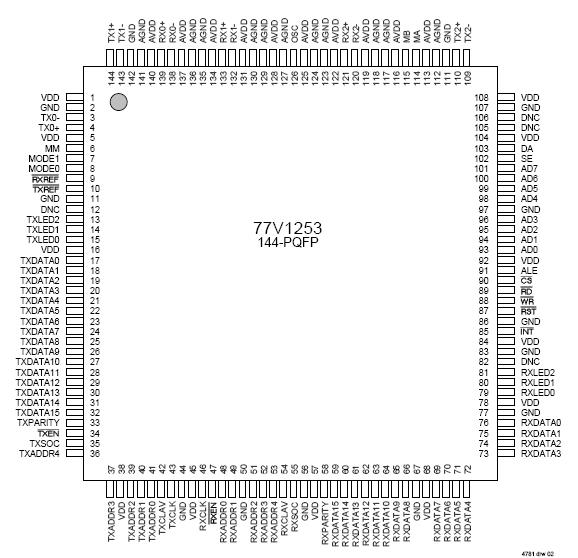

IDT77V1253 Connection Diagram
IDT77V1253
