Purchase IDT77V500, In-stock IDT77V500 From SeekIC.
Package Cooled:IDT D/C:QFP
Part Number: IDT77V500
Package Cooled: IDT
D/C: QFP
Description: The IDT77V500 ATM Cell Based Switch Controller, when paired with the IDT77V400 Switching Memory, forms...
- Table of contents:
IDT77V500
-
Suppliers
DataSheet
General Description
IDT77V500 General Description
The IDT77V500 ATM Cell Based Switch Controller, when paired with the IDT77V400 Switching Memory, forms the core control logic and switch fabric for a 1.2Gbps non-blocking ATM switch. The IDT77V500 manages all of the switch traffic moving through the IDT77V400, commanding the storage of incoming ATM cells and interpreting and modifying the cell header information as necessary for data flow through the switch. It then uses the header information, including priority indicators, to queue and direct the individual cells for transmission out the appropriate output port of the IDT77V400.
IDT77V500 Maximum Ratings
| Symbol | Description | Max | Unit |
| VTERM2 | Terminal Voltage with Respect to GND | -0.5 to +5.5 | V |
| TBIAS | Temperature Under Bias | -55 to +125 | °C |
| TSTG | Storage Temperature | -55 to +120 | °C |
| IOUT | DC Output Current | 50 | mA |
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. VTERM must not exceed Vcc + 0.3V for more than 25% of the cycle time or 10ns maximum, and is limited to 20mA for the period of VTERM Vcc + 0.3V
IDT77V500 Features
` Single chip controller for IDT77V400 Switching Memory
` One IDT77V500 and one IDT77V400 form the core required for a 1.2Gbps 8 x 8 port non-blocking switch
` Supports up to 8192 Virtual Connections (VCs)
` Per VC queuing for fairness, with four priorities per VC available for each output port of the switch
` Capable of supporting CBR, VBR, UBR, and ABR (EFCI) service classes
` Low power dissipation – 430mW (typ.)
` Optional header modification operation
` Multicasting and Broadcasting capability
` Provides congestion management support through EFCI, CLP, and EPD functionality
` System clock cycle times as fast as 25ns (40MHz)
` Option available for resolving contention issues between multiple IDT77V500 configurations
` One IDT77V500 can manage up to eight IDT77V400's without derating for larger switch configurations
` Industrial temperature range (-40° C to +85° C) is available
` Single +3.3V ± 300mV power supply
` Available in a 100-pin Thin Plastic Quad Flat Pack (TQFP) and 144-ball BGA
` One IDT77V500 and one IDT77V400 form the core required for a 1.2Gbps 8 x 8 port non-blocking switch
` Supports up to 8192 Virtual Connections (VCs)
` Per VC queuing for fairness, with four priorities per VC available for each output port of the switch
` Capable of supporting CBR, VBR, UBR, and ABR (EFCI) service classes
` Low power dissipation – 430mW (typ.)
` Optional header modification operation
` Multicasting and Broadcasting capability
` Provides congestion management support through EFCI, CLP, and EPD functionality
` System clock cycle times as fast as 25ns (40MHz)
` Option available for resolving contention issues between multiple IDT77V500 configurations
` One IDT77V500 can manage up to eight IDT77V400's without derating for larger switch configurations
` Industrial temperature range (-40° C to +85° C) is available
` Single +3.3V ± 300mV power supply
` Available in a 100-pin Thin Plastic Quad Flat Pack (TQFP) and 144-ball BGA

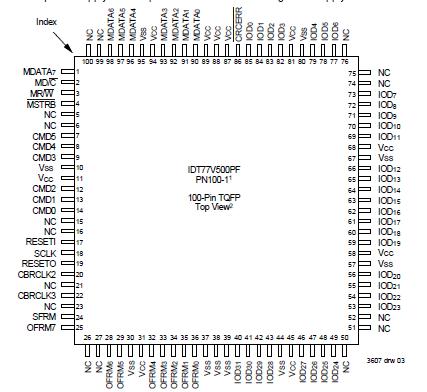

IDT77V500 Connection Diagram
IDT77V500
PDF/DataSheet Download
- Datasheet: IDT77V500
- File Size: 469282 KB
- Manufacturer: IDT [Integrated Device Technology]
- Click here to Download
