IDT79RV3081
-
Suppliers
DataSheet
General Description
IDT79RV3081 Maximum Ratings
| Symbol | Rating | Commercial | Military | Unit |
| VTERM | Terminal Voltage with Respect to GND |
0.5 to +7.0 | 0.5 to +7.0 | V |
| TC | Operating Case Temperature |
0 to +85 | 55 to +125 | |
| TBIAS | Case Temperature Under Bias |
55 to +125 | 65 to +135 | |
| TSTG | Storage Temperature |
55 to +125 | 65 to +155 | |
| VIN | Input Voltage | 0.5 to +7.0 | 0.5 to +7.0 | V |
IDT79RV3081 Features
• Instruction set compatible with IDT79R3000A, R3041,
R3051, and R3071 RISC CPUs
• High level of integration minimizes system cost
- R3000A Compatible CPU
- R3010A Compatible Floating Point Accelerator
- Optional R3000A compatible MMU
- Large Instruction Cache
- Large Data Cache
- Read/Write Buffers
• 43VUPS at 50MHz
- 13MFlops
• Flexible bus interface allows simple, low cost designs
• Optional 1x or 2x clock input
• 20 through 50MHz operation
• "V" version operates at 3.3V
• 50MHz at 1x clock input and 1/2 bus frequency only
• Large on-chip caches with user configurability
- 16kB Instruction Cache, 4kB Data Cache
- Dynamically configurable to 8kB Instruction Cache,
8kB Data Cache
- Parity protection over data and tag fields
• Low cost 84-pin packaging
• Superset pin- and software-compatible with R3051, R3071
• Multiplexed bus interface with support for low-cost, lowspeed
memory systems with a high-speed CPU
• On-chip 4-deep write buffer eliminates memory write stalls
• On-chip 4-deep read buffer supports burst or simple block
reads
• On-chip DMA arbiter
• Hardware-based Cache Coherency Support
• Programmable power reduction mode
• Bus Interface can operate at half-processor frequency
R3051, and R3071 RISC CPUs
• High level of integration minimizes system cost
- R3000A Compatible CPU
- R3010A Compatible Floating Point Accelerator
- Optional R3000A compatible MMU
- Large Instruction Cache
- Large Data Cache
- Read/Write Buffers
• 43VUPS at 50MHz
- 13MFlops
• Flexible bus interface allows simple, low cost designs
• Optional 1x or 2x clock input
• 20 through 50MHz operation
• "V" version operates at 3.3V
• 50MHz at 1x clock input and 1/2 bus frequency only
• Large on-chip caches with user configurability
- 16kB Instruction Cache, 4kB Data Cache
- Dynamically configurable to 8kB Instruction Cache,
8kB Data Cache
- Parity protection over data and tag fields
• Low cost 84-pin packaging
• Superset pin- and software-compatible with R3051, R3071
• Multiplexed bus interface with support for low-cost, lowspeed
memory systems with a high-speed CPU
• On-chip 4-deep write buffer eliminates memory write stalls
• On-chip 4-deep read buffer supports burst or simple block
reads
• On-chip DMA arbiter
• Hardware-based Cache Coherency Support
• Programmable power reduction mode
• Bus Interface can operate at half-processor frequency

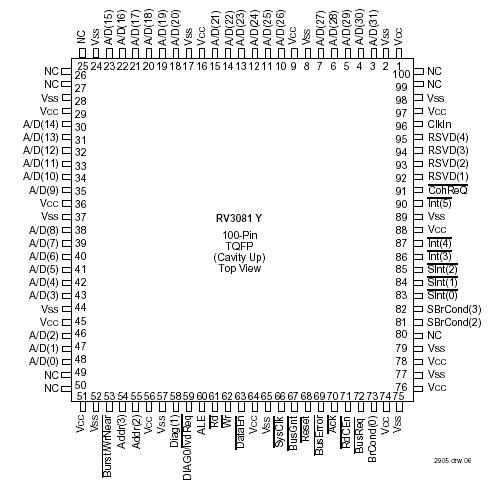

IDT79RV3081 Connection Diagram
IDT79RV3081
