IDTQS316211

Features: *Enhanced N channel FET with no inherent diode to Vcc*5 bidirectional switches connect inputs to outputs* Zero propagation delay, zero ground bounce* TTL-compatible input and output levels* Undershoot clamp diodes on all switch and control inputs* Available in SSOP and TSSOP packagesAppl...

product image

IDTQS316211 Picture
See larger image
SeekIC No. : 004373403 Detail

IDTQS316211: Features: *Enhanced N channel FET with no inherent diode to Vcc*5 bidirectional switches connect inputs to outputs* Zero propagation delay, zero ground bounce* TTL-compatible input and output levels...

IDTQS316211 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS316211
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Enhanced N channel FET with no inherent diode to Vcc
*5 bidirectional switches connect inputs to outputs
* Zero propagation delay, zero ground bounce
* TTL-compatible input and output levels
* Undershoot clamp diodes on all switch and control inputs
* Available in SSOP and TSSOP packages


Application

* Hot-swapping, hot-docking
* Voltage translation (5V to 3.3V)
* Logic replacement (data processing)
* Power conservation
* Capacitance reduction and isolation
* Bus isolation
* Clock gating


Pinout

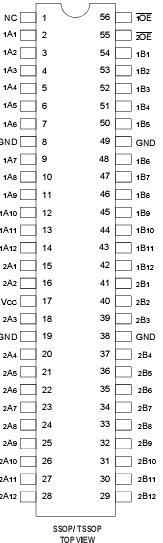

Connection Diagram


Specifications

Symbol Description Max Unit
VTERM(2) Supply Voltage to Ground 0.5 to +7 V
VTERM(3) DC Switch Voltage VS 0.5 to +7 V
VTERM(3) DC Input Voltage VIN 0.5 to +7 V
VAC AC Input Voltage (pulse width 20ns) 3 V
IOUT DC Output Current 120 mA
PMAX Maximum Power Dissipation (TA = 85) 0.93 W
TSTG Storage Temperature 65 to +150



Description

  The QS316211 provides a set of 24 high-speed CMOS TTL-compatible bus switches.  The low ON resistance of the QS316211 allows inputs to be connected to outputs without adding propagation delay and without gener-ating additional ground bounce noise.  The device operates as a 24-bit bus switch.  When 1OE is low, 1An is connected to 1Bn.  When 2OE is low, 2An is connected to 2Bn.

  The QS316211 is ideal for switching wide digital buses, 5V to 3.3V translation, and for hot plug buffering.

  The QS316211 is characterized for operation at -40°C to +85°C.
